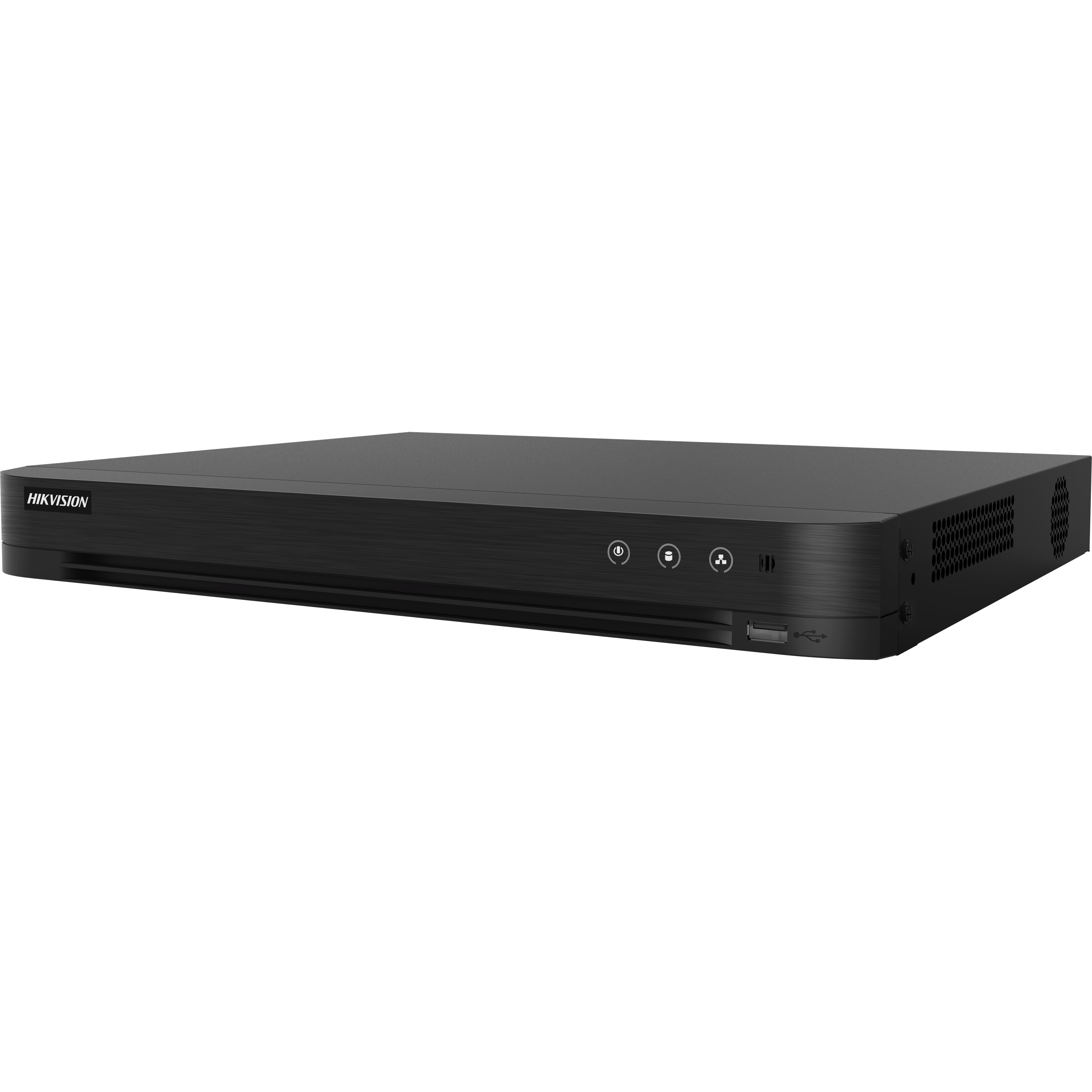

Hikvision DS-7232HGHI-M2 32-Channel Turbo HD DVR | 32-ch Turbo HD | TVI/AHD/CVI/CVBS/IP | 2 SATA | Up to 10TB per HDD

Hikvision 32-ch 720p 1U H.265 DVR. Deep learning based human and vehicle targets classification of Motion Detection 2.0; H.265 Pro+/H.265 Pro/H.265 video compression; HDTVI/AHD/CVI/CVBS/IP video input.

Key Specifications

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 18-ch IP camera inputs (up to 5 MP)
• Up to 1080p Lite@15 fps encoding capability
• Max. 1200 m for 720p HDTVI signal
• IP video input: 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input: 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input: 1080p25, 1080p30, 720p25, 720p30
• Total bandwidth: 128 Mbps
• Motion Detection 2.0: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by …
• HDMI output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Encoding resolution: 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 32-ch via coaxial cable
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Network interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• SATA: 2 SATA interface
• HDD capacity: Up to 10 TB capacity for each disk
• USB: Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
• Power supply: 12 VDC, 3.33 A
• Power consumption: ≤ 18 W (without HDD)
• Dimensions: 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
