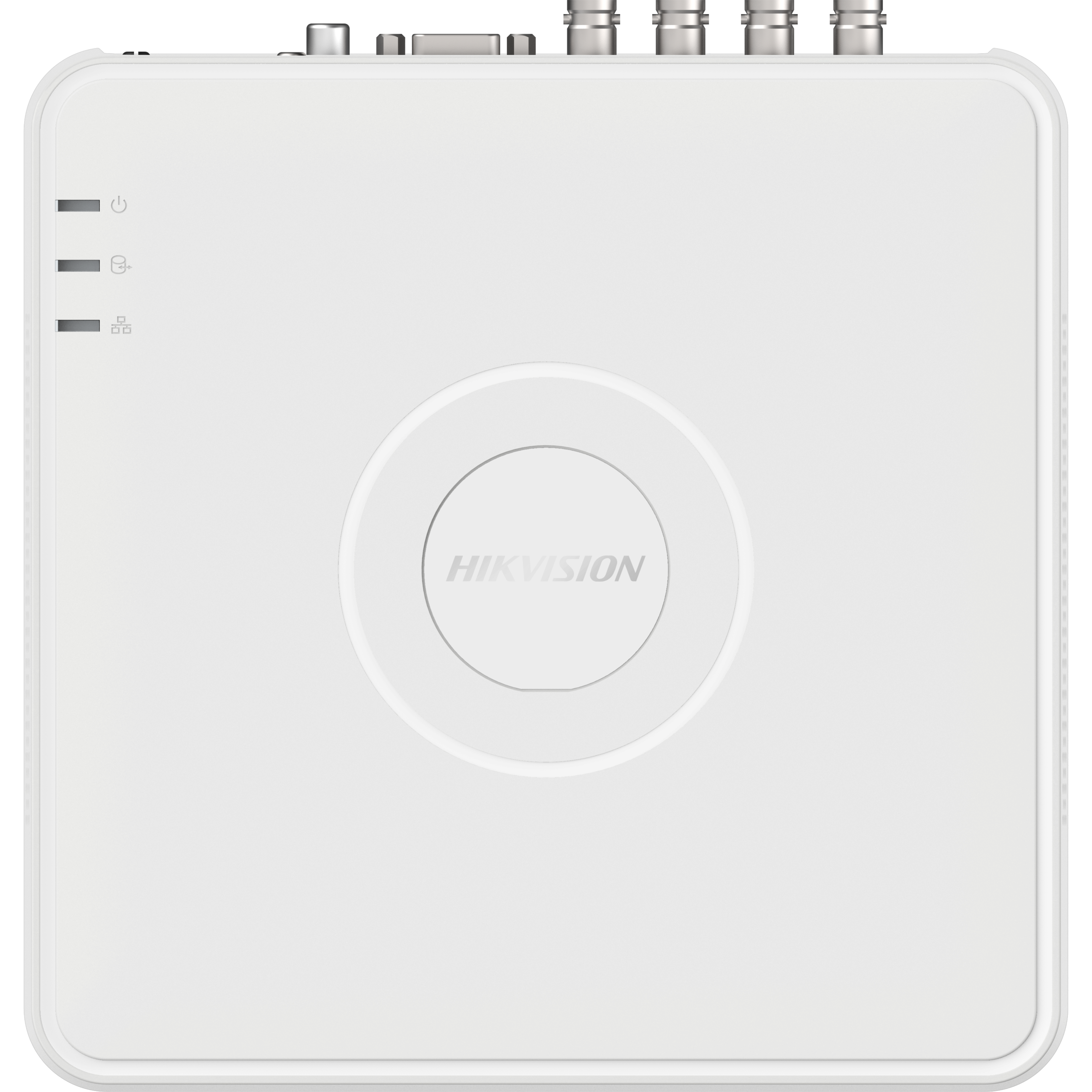

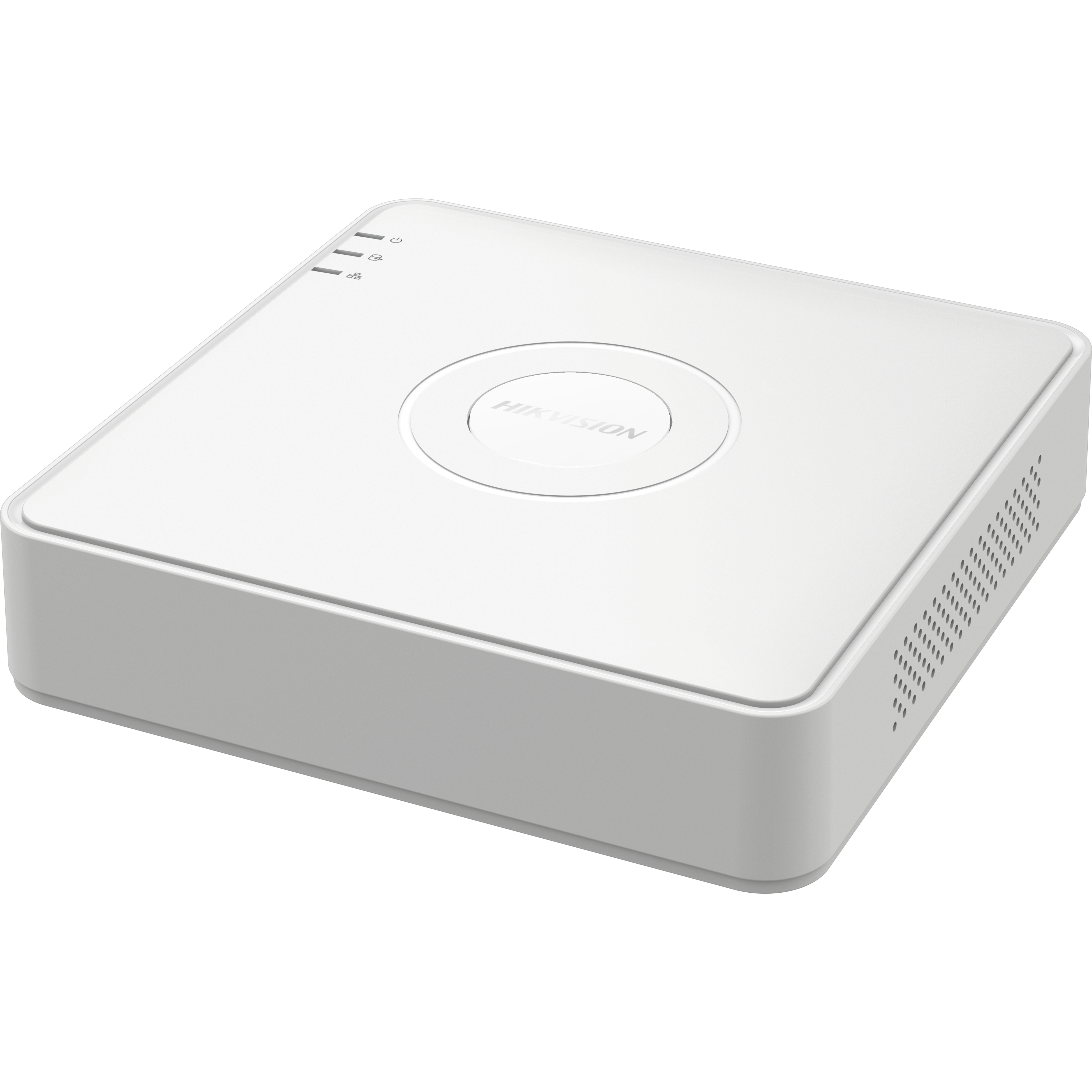

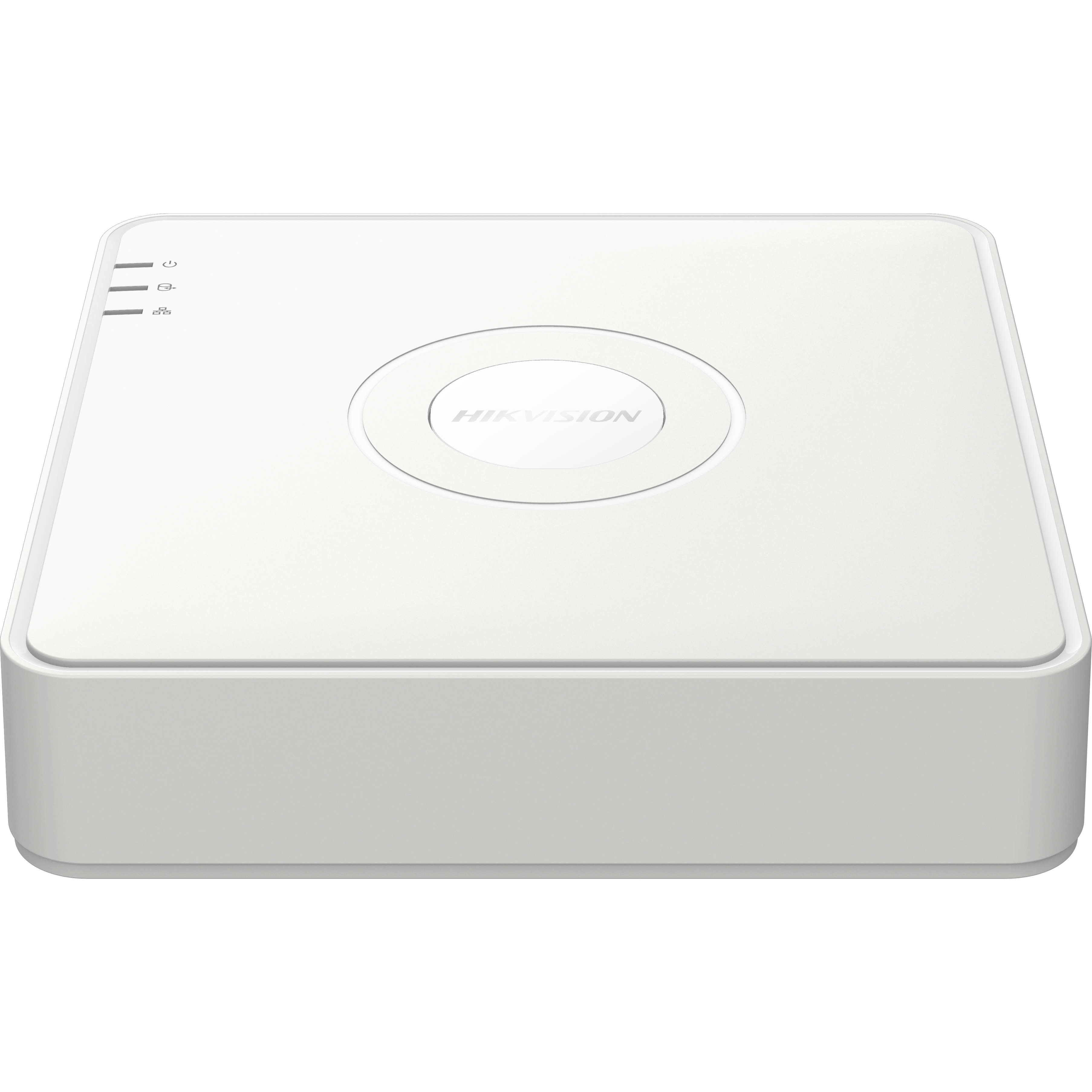

Hikvision DS-7108HGHI-M1/T 8-Channel Turbo HD DVR | 8-ch Turbo HD | TVI/AHD/CVI/CVBS/IP | 1 SATA | Up to 4TB per HDD

Hikvision 8-ch 1080p Lite Mini 1U H.265 DVR. Support all channels motion detection technology; H.265 Pro+/H.265 Pro/H.265 video compression; HDTVI/CVI/AHD/IP/CVBS video inputs.

Key Specifications

• Support all channels motion detection technology
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/CVI/AHD/IP/CVBS video inputs
• Audio over coaxial cable
• Support all channels HDTVI two-way audio technology
• Up to 10-ch IP camera inputs
• IP video input: 2-ch (up to 10-ch) Up to 5MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

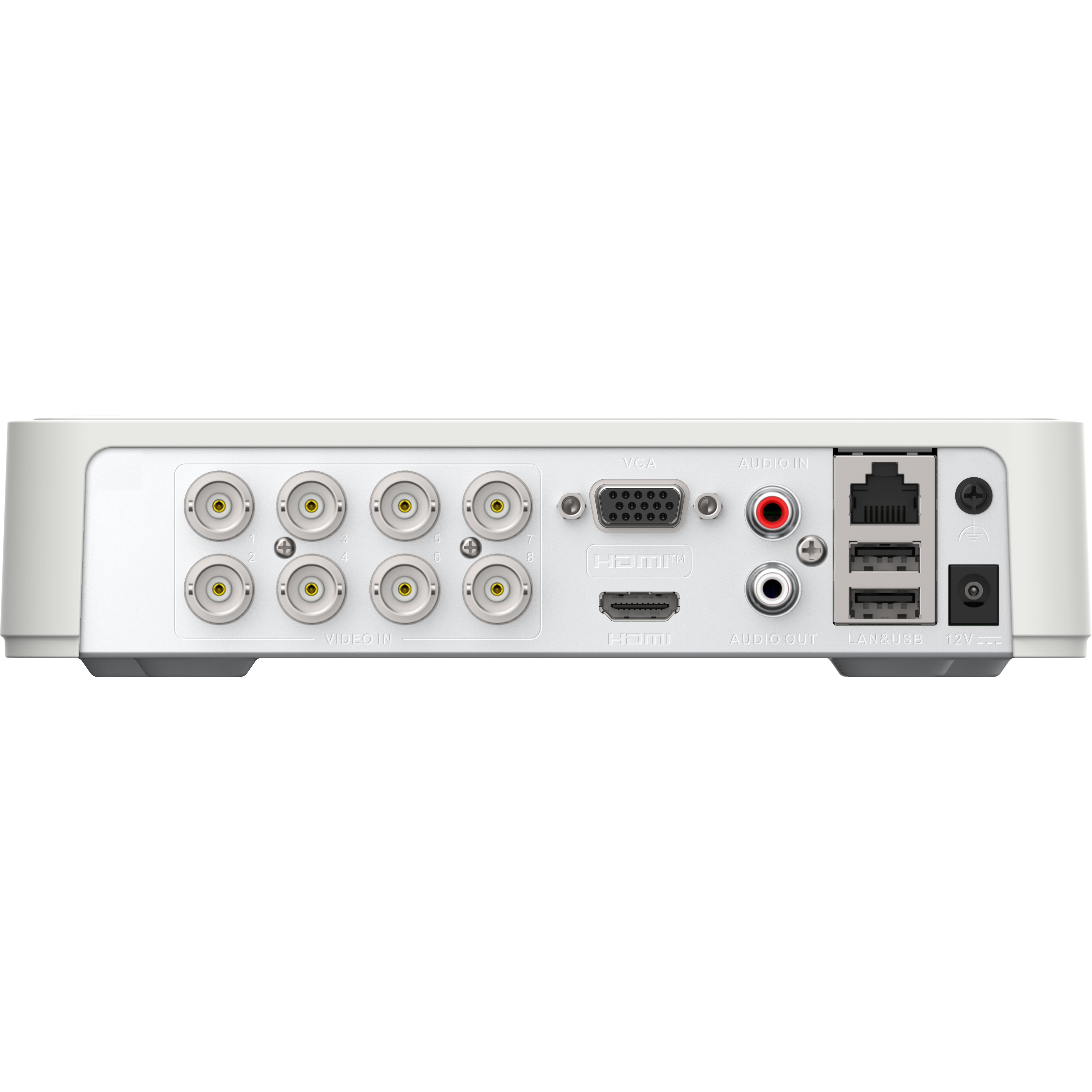

• Analog video input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input: 1080p25, 1080p30, 720p25, 720p30
• Total bandwidth: 72 Mbps
• Motion Detection 2.0: Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by …
• HDMI output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Output mode: HDMI/VGA simultaneous output
• Encoding resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Synchronous playback: 8-ch
• Audio input: 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
• Two-way audio: Reuse the first audio input
• Network interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• SATA: 1 SATA interface
• HDD capacity: Up to 4 TB capacity for each disk
• USB: Rear panel: 2 × USB 2.0
• Power supply: 12 VDC, 1.5 A
• Power consumption: ≤ 10 W (without HDD)

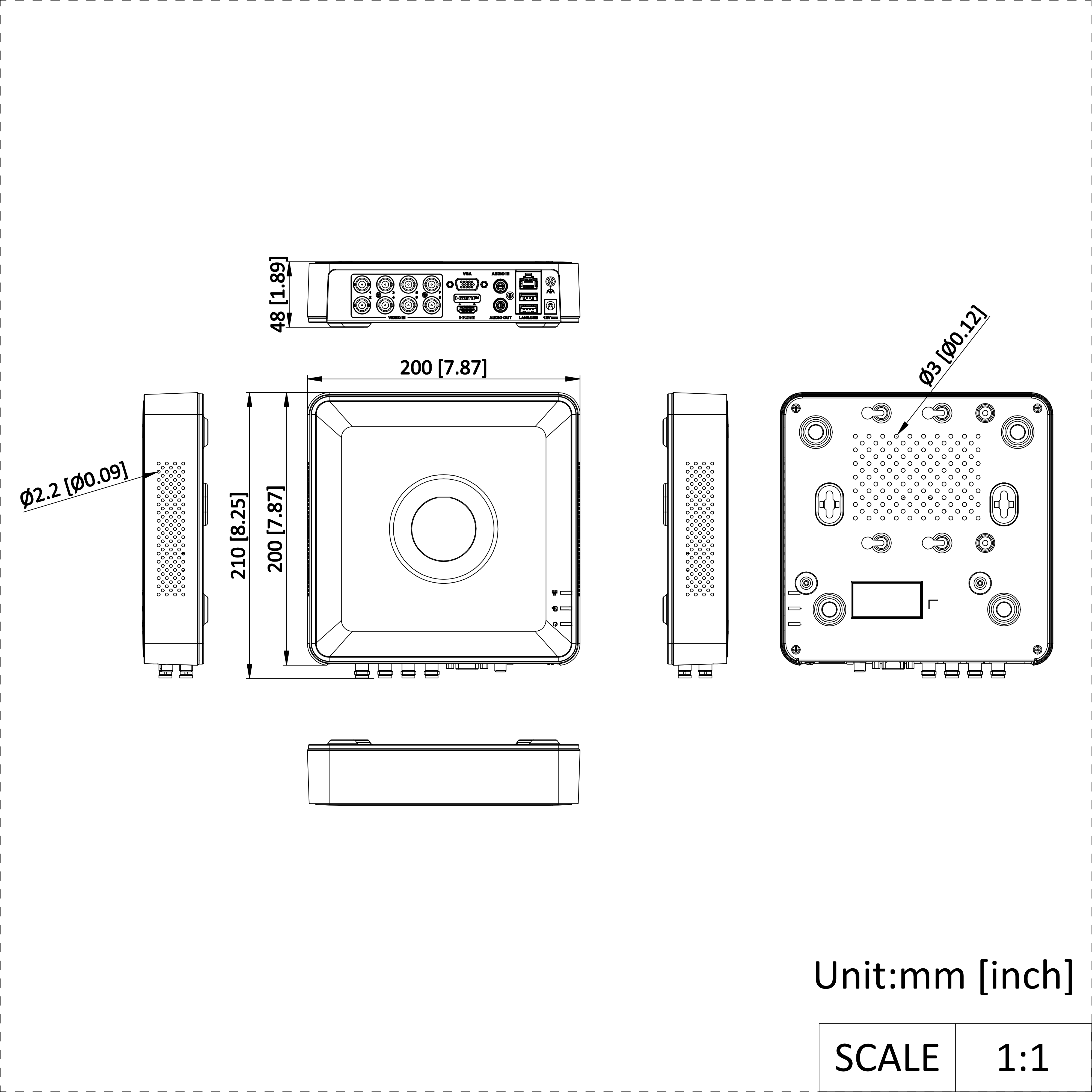

• Dimensions: 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
