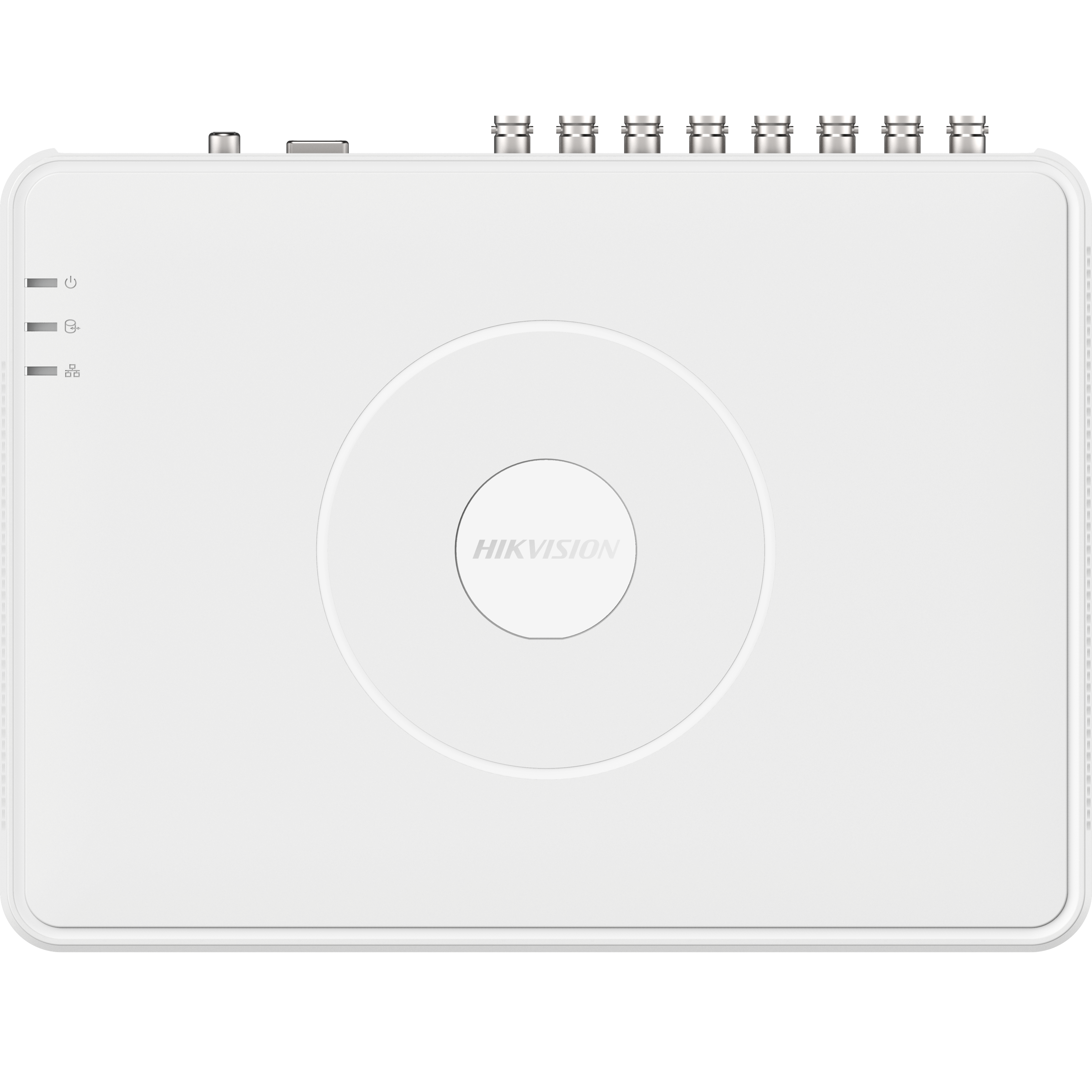

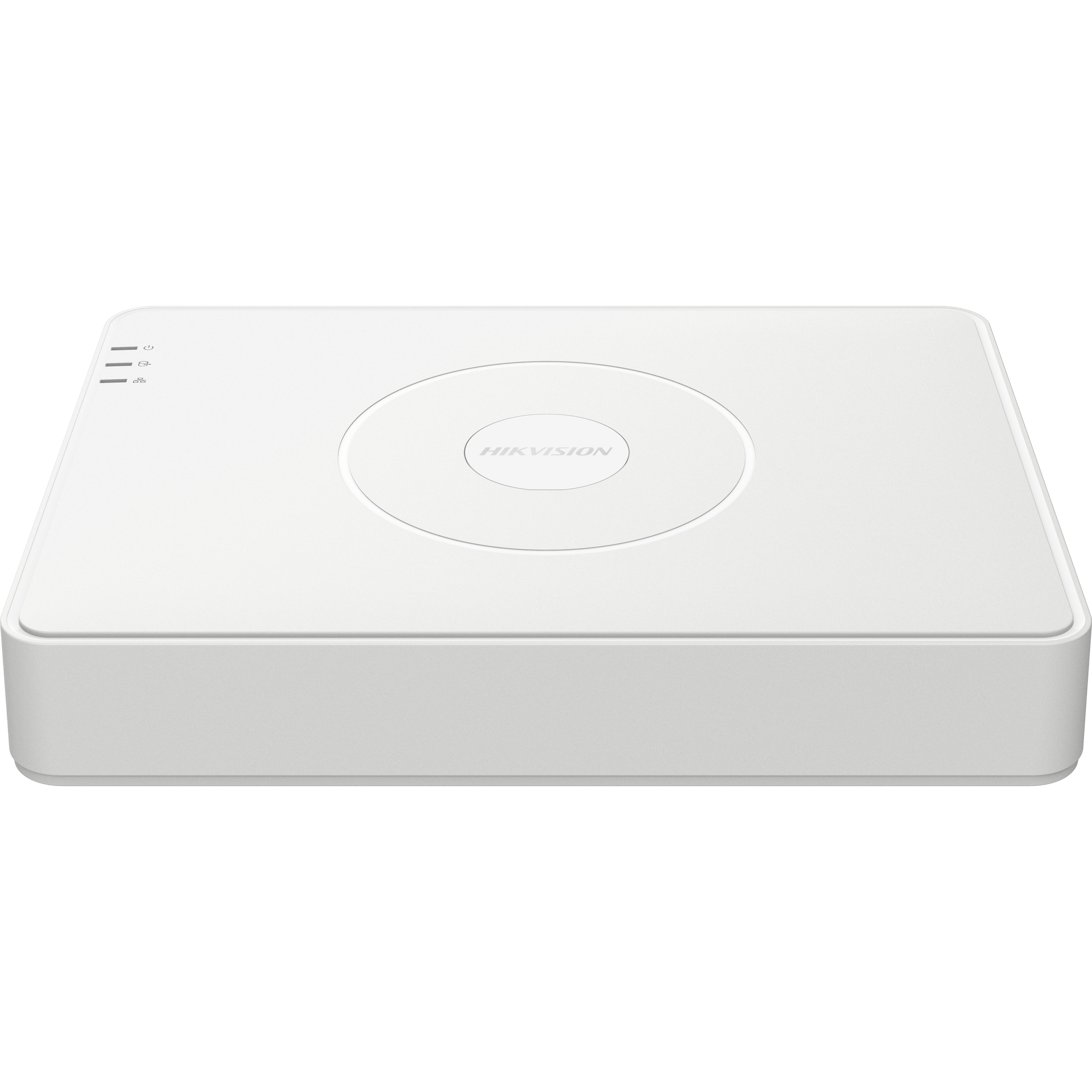

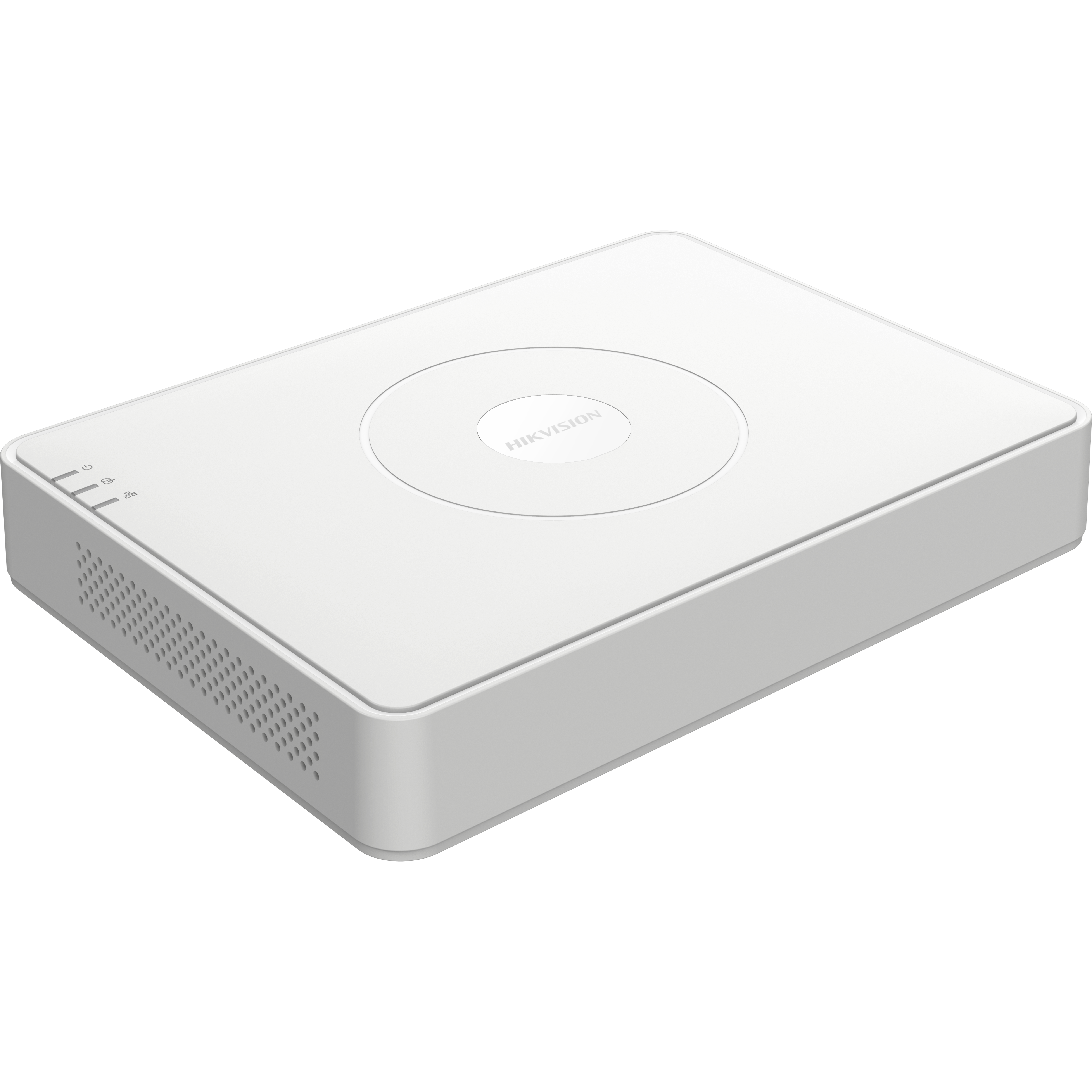

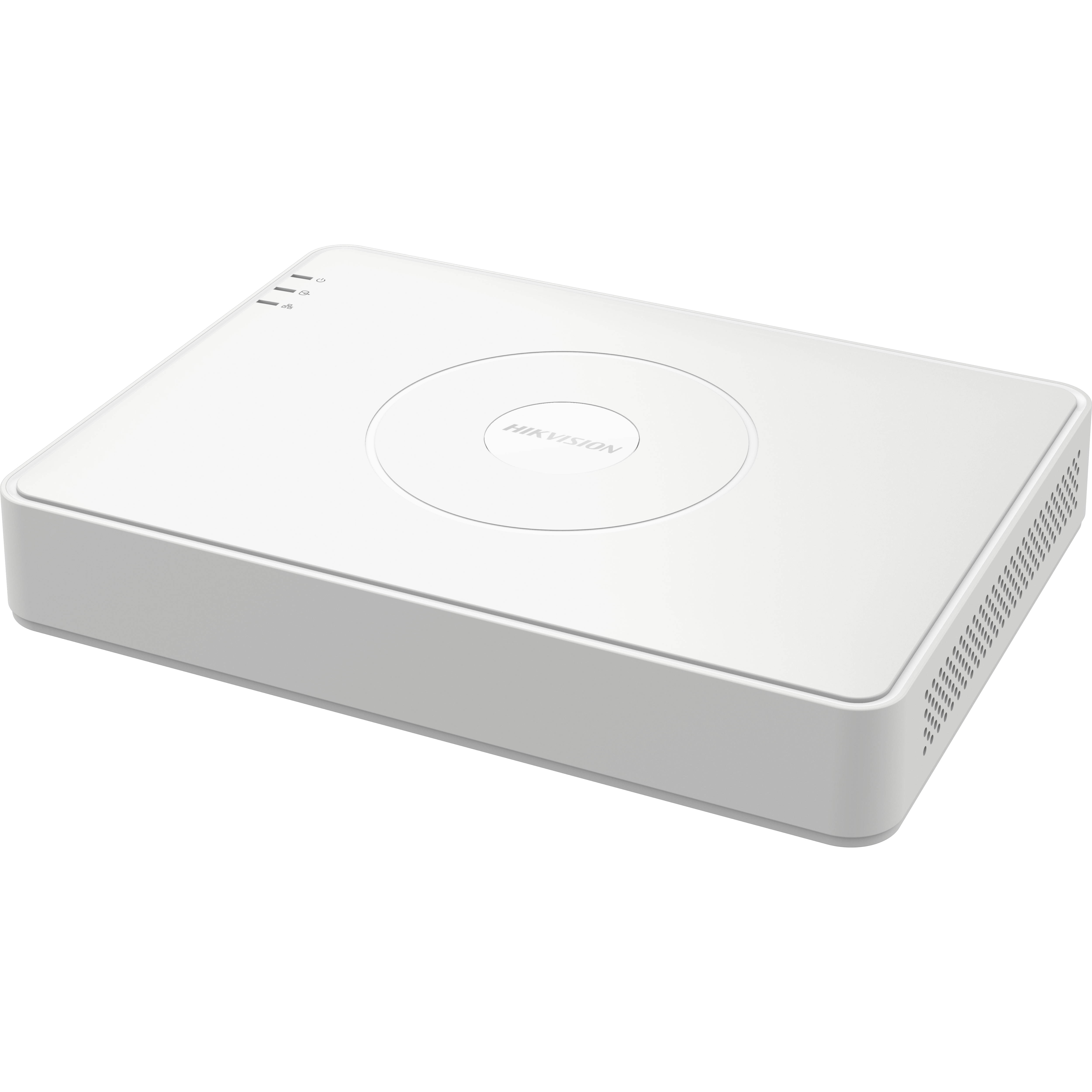

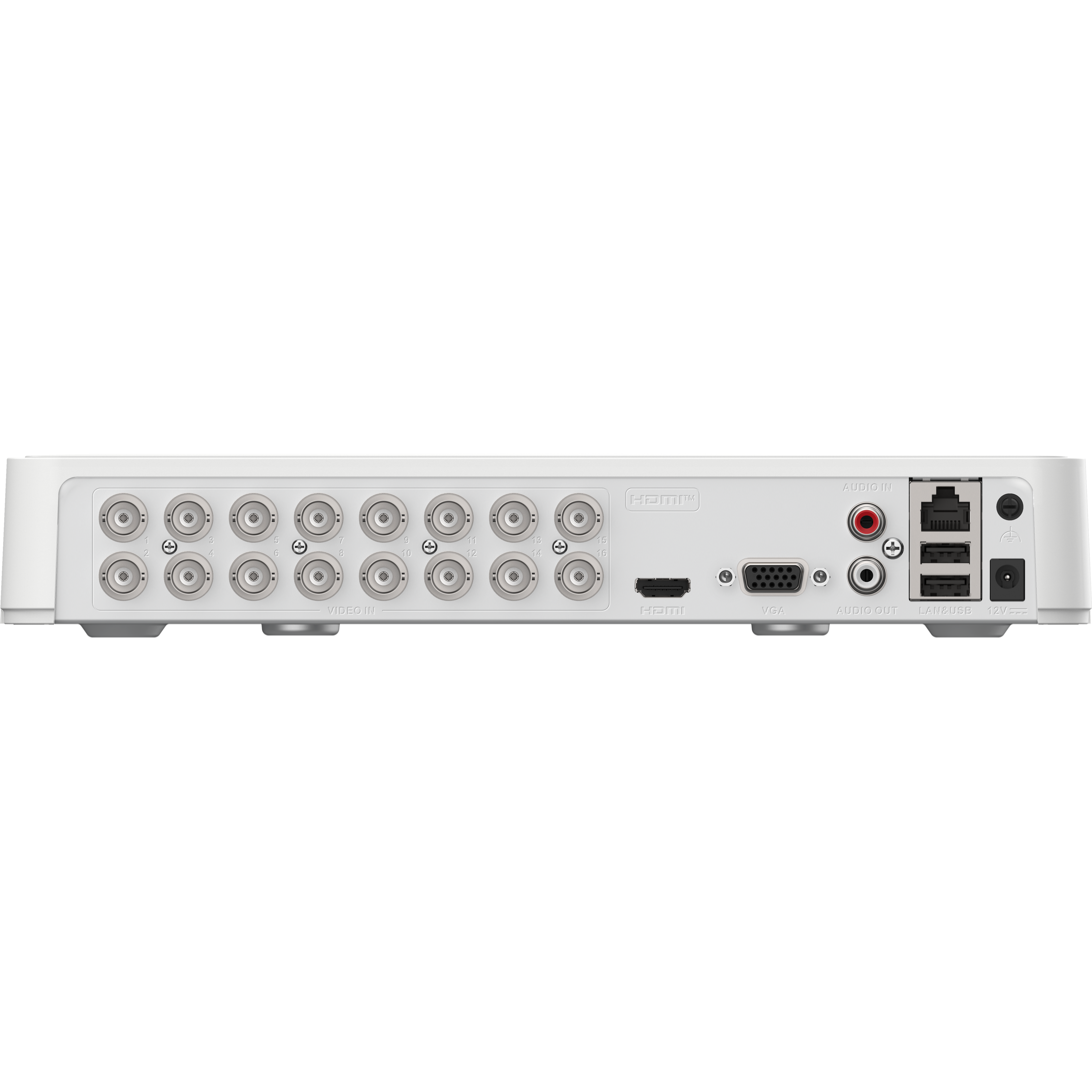

Hikvision DS-7116HGHI-M1/T 16-Channel Turbo HD DVR | 16-ch Turbo HD | TVI/AHD/CVI/CVBS/IP | 1 SATA | Up to 6TB per HDD

Hikvision 16-ch 1080P Lite Mini 1U H.265 DVR. Deep learning based human and vehicle targets classification of Motion Detection 2.0; H.265 Pro+/H.265 Pro/H.265 video compression; HDTVI/AHD/CVI/CVBS/IP video input.

Key Specifications

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 18-ch IP camera input (up to 5 MP)
• Encoding ability up to 1080p lite @ 15 fps
• Support all channels HDTVI two-way audio technology
• IP video input: 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input: 1080p25, 1080p30, 720p25, 720p30
• Total bandwidth: 96 Mbps
• Motion Detection 2.0: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by …
• HDMI output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Output mode: HDMI/VGA simultaneous output
• Encoding resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF
• Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Audio input: 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
• SATA: 1, SATA interface
• HDD capacity: Up to 6 TB capacity for each disk
• USB: 2 × USB 2.0
• Power supply: 12 VDC, 2 A
• Power consumption: ≤ 7 W (without HDD)

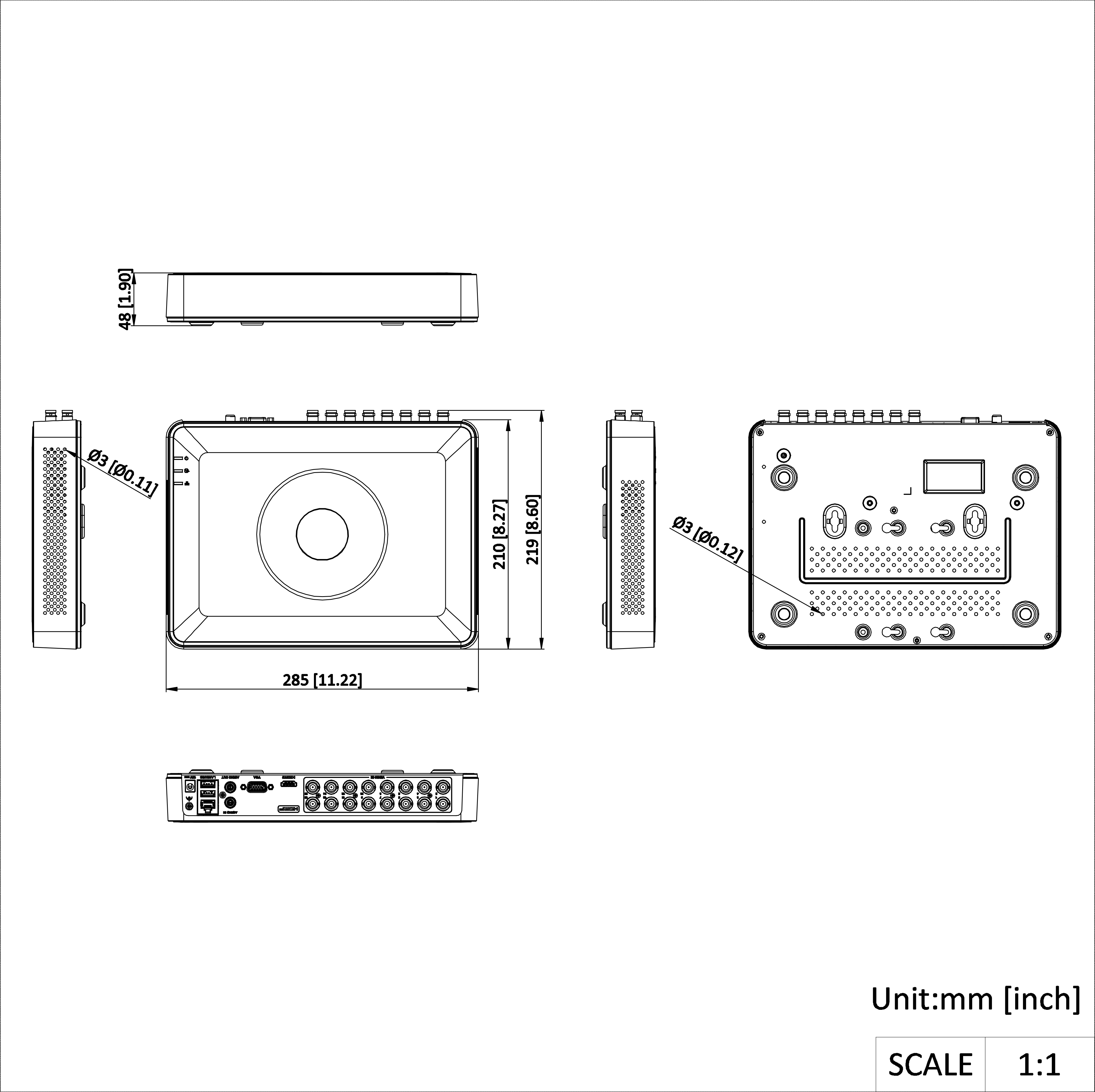

• Dimensions: 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
