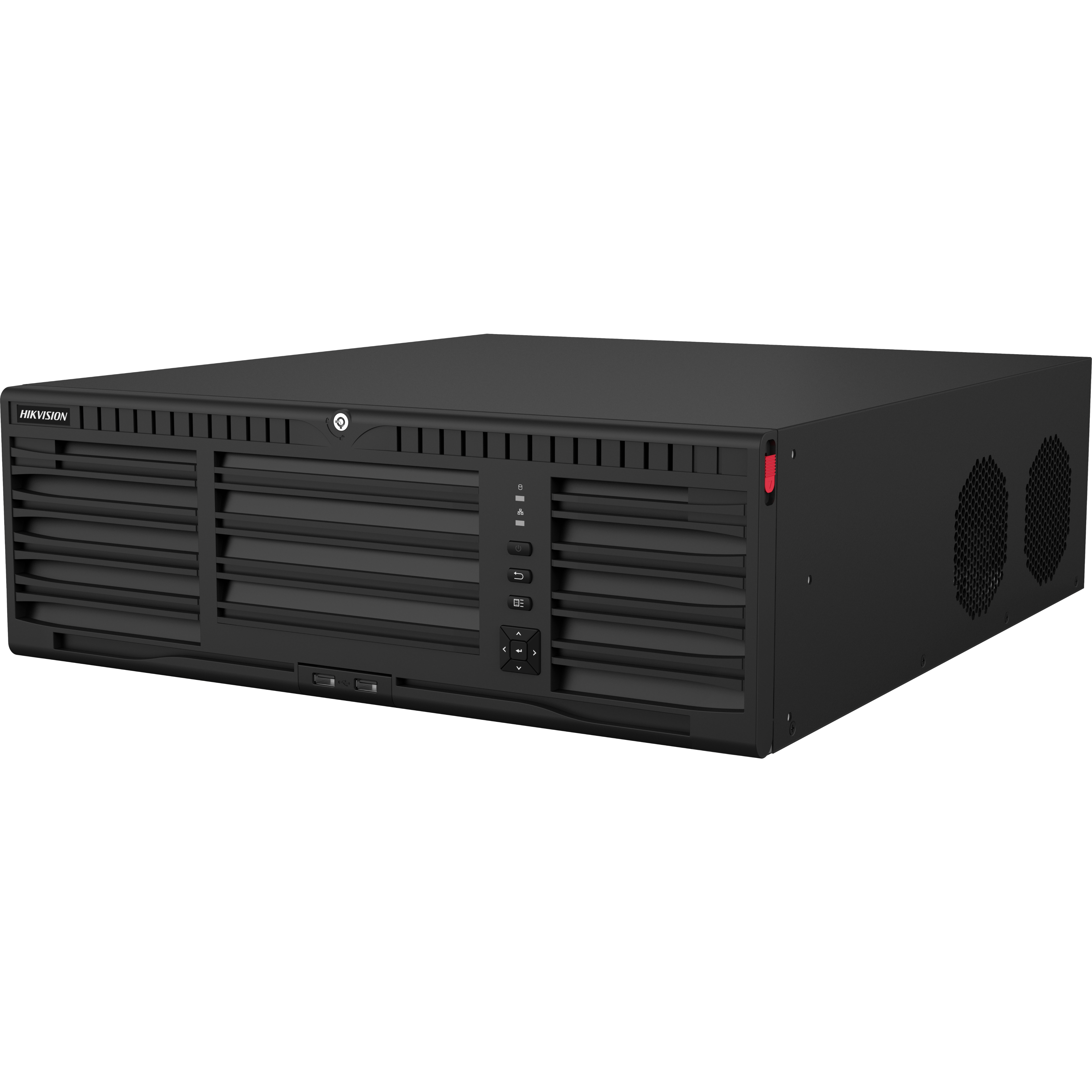

Hikvision DS-96128NI-M16 128-Channel 8K 16-SATA NVR | 128-ch IP | 400 Mbps Incoming | 16 SATA | Up to 20TB per HDD | 8K HDMI

Hikvision 128-ch 3U 8K NVR. Up to 128-ch IP camera inputs; up to 40 x 1080p@ 30fps decoding capacity; up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth.

Key Specifications

• Up to 128-ch IP camera inputs
• Up to 40 x 1080p@ 30fps decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
• Up to 8-ch IP speakers can be connected
• IP video input: 128-ch Up to 32 MP resolution
• Incoming bandwidth: 400 Mbps
• Outgoing bandwidth: 400 Mbps
• HDMI 1 output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × …
• Output mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
• Recording resolution: 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding capability: 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 5-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);20-ch@4 MP (30 …
• Synchronous playback: 16-ch
• Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• SATA: 16 SATA interfaces supporting hot-plug
• eSATA: 1 eSATA interface
• HDD capacity: Up to 20 TB capacity for each disk
• RAID: RAID0, RAID1, RAID5, RAID6, RAID10
• Alarm in/out: 16/9
• USB: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
• Power supply: 100 to 240 VAC, 50 to 60 Hz
• Power consumption: ≤ 50 W (without HDD)

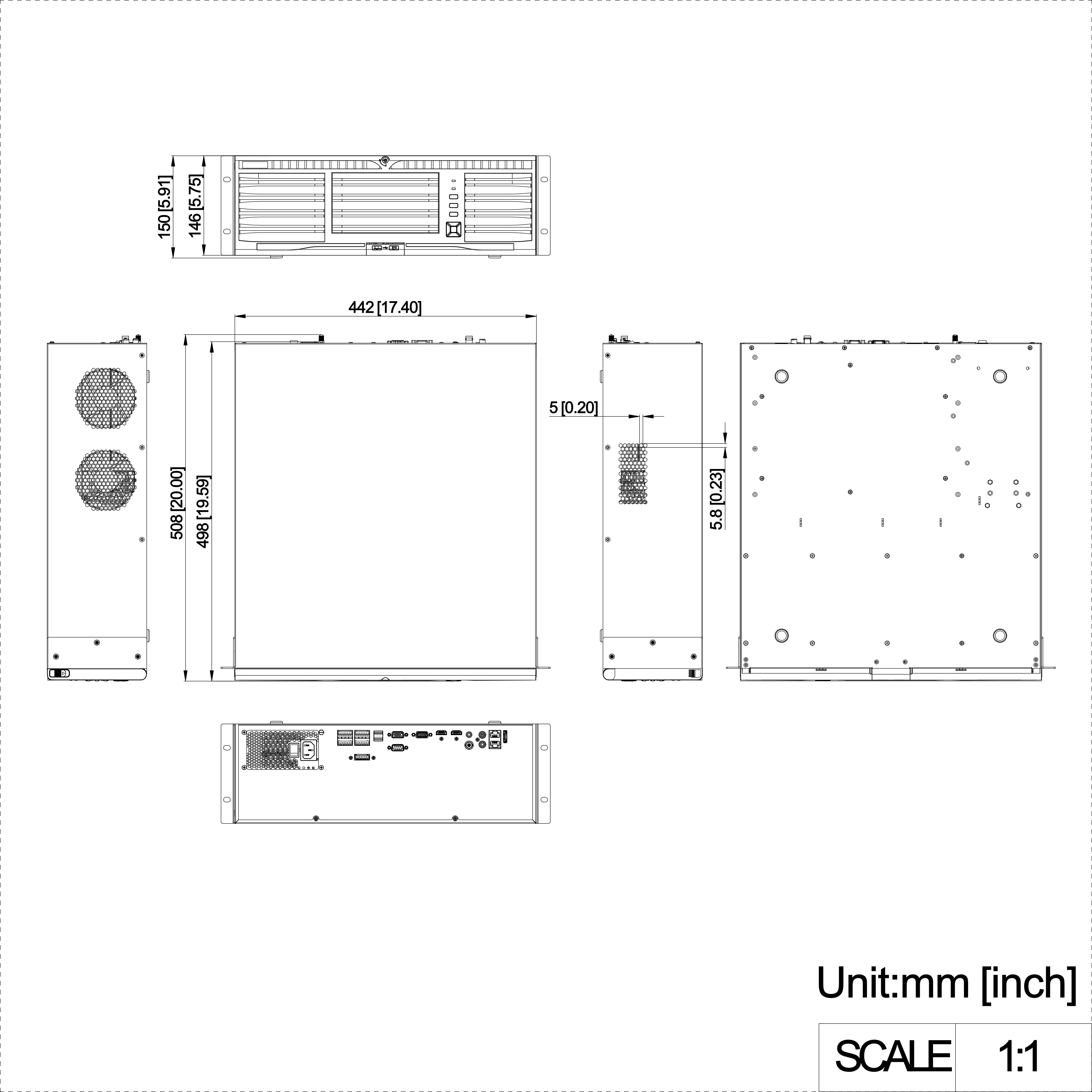

• Dimensions: 445 × 496 × 150 mm (17.5" × 19.5" × 5.9")
