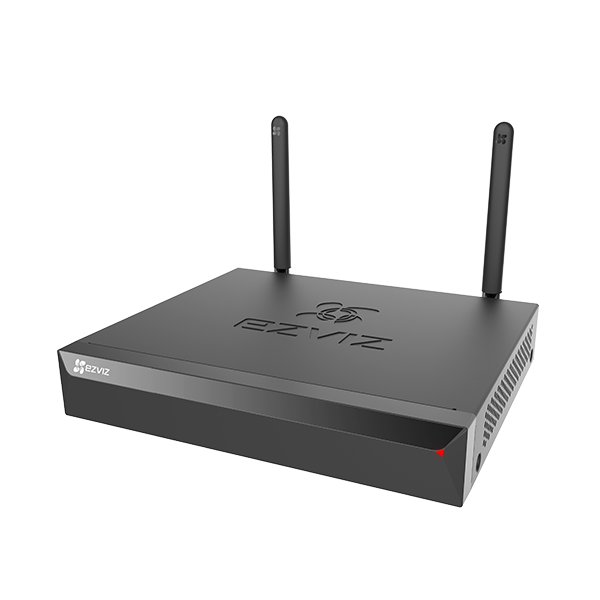

EZVIZ X5S 4-Channel Wi-Fi NVR

4-channel Wi-Fi NVR that records up to four 3K EZVIZ or ONVIF cameras, with HDMI/VGA output and up to 8 TB storage.

Key features

• 4 channels, up to 3K per camera
• Wi-Fi range up to 100 m (2 antennas)
• HDMI + VGA output
• H.265 recording; ONVIF camera support
• 1 × SATA bay for 1–8 TB 3.5″ HDD
• 2 × USB 2.0; app remote access

Key Specifications

• Model: CS-X5S-R100-4W, CS-X5S-R100-8W

IPC Access Capability

• Wireless/Wired IPC Access Capability: 3K *4/3K *8
• Wired IPC Access Capability: 3K *4 (X5S-4W) / 3K *8 (X5S-8W)

Network Parameters

• Antenna Number: 2
• Max Wireless Range: 100m
• Radio Frequency: 2.4G
• Ethernet Port: One 10/100M adaptable Ethernet interface
• Required Access Bandwidth: 50 Mbps/100 Mbps

Video Output

• VGA: 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz
• HDMI: 1 channel resolution up to 2592*1944/30HZ

Audio/Video Codec

• Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
• Video Encoding: H.265, H.264
• Decode Playback: Supports 4*3K/Supports 8*3K

Video Recording Management

• Video Recording Mode: Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording
• Backup Mode: Hard disk backup, Internet application backup
• Playback Mode: Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback

Open Protocol

• Open Protocol Support: HIKVISION, ONVIF (V.2.5)

HDD

• Interface Type: One built-in SATA port
• Capability: Supports 1TB to 8TB 3.5-inch HDD

External Interface

• Audio Input/ Output: Not support
• Hardware Reset: Supports
• USB2.0 Interface: 2

Dimensions

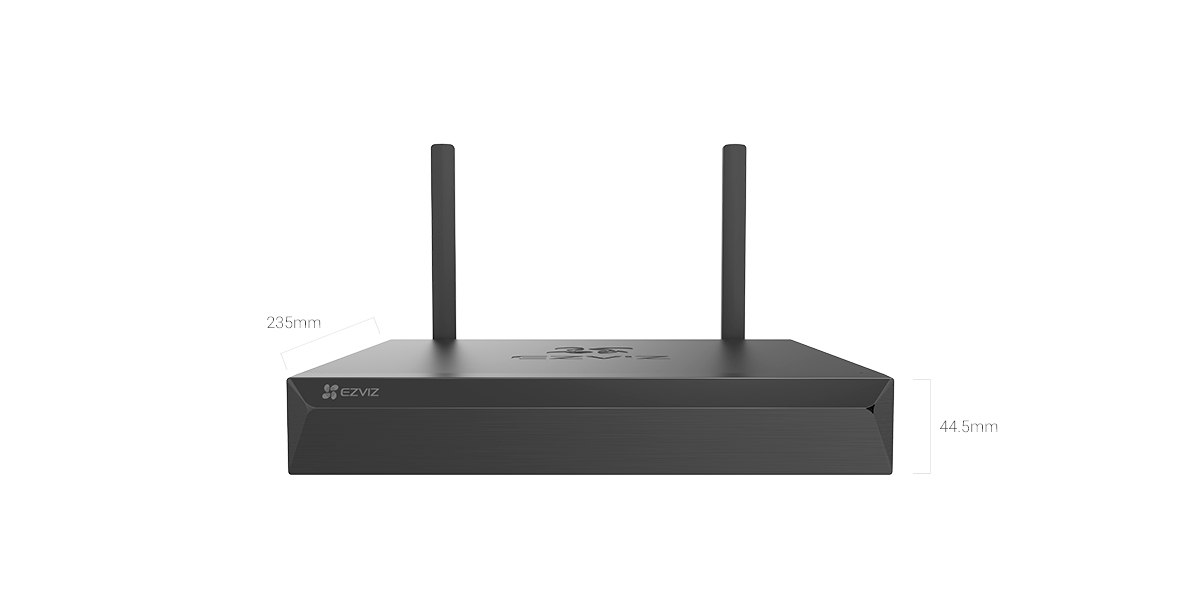

• Product Dimensions: 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)

Power Supply

• DC: 12V/1.5A

Consumption

• Standby status: ≤8W

Weight

• Net Weight: 932 g
• In the box: X5S NVR × 1
• Certifications: CE / UL / RoHS / WEEE / REACH
