Hikvision DS-7608NI-Q1(E) 8-Channel Q Series NVR | 8-ch IP | 80 Mbps Incoming | 1 SATA | Up to 8TB per HDD | 4K HDMI

Hikvision 8-ch 1U Q Series NVR. Up to 8-ch IP camera inputs; H.265+/H.265/H.264+/H.264 video formats; up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity.

Key Specifications

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• IP video input: 8-ch
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• Motion Detection 2.0: 4-ch

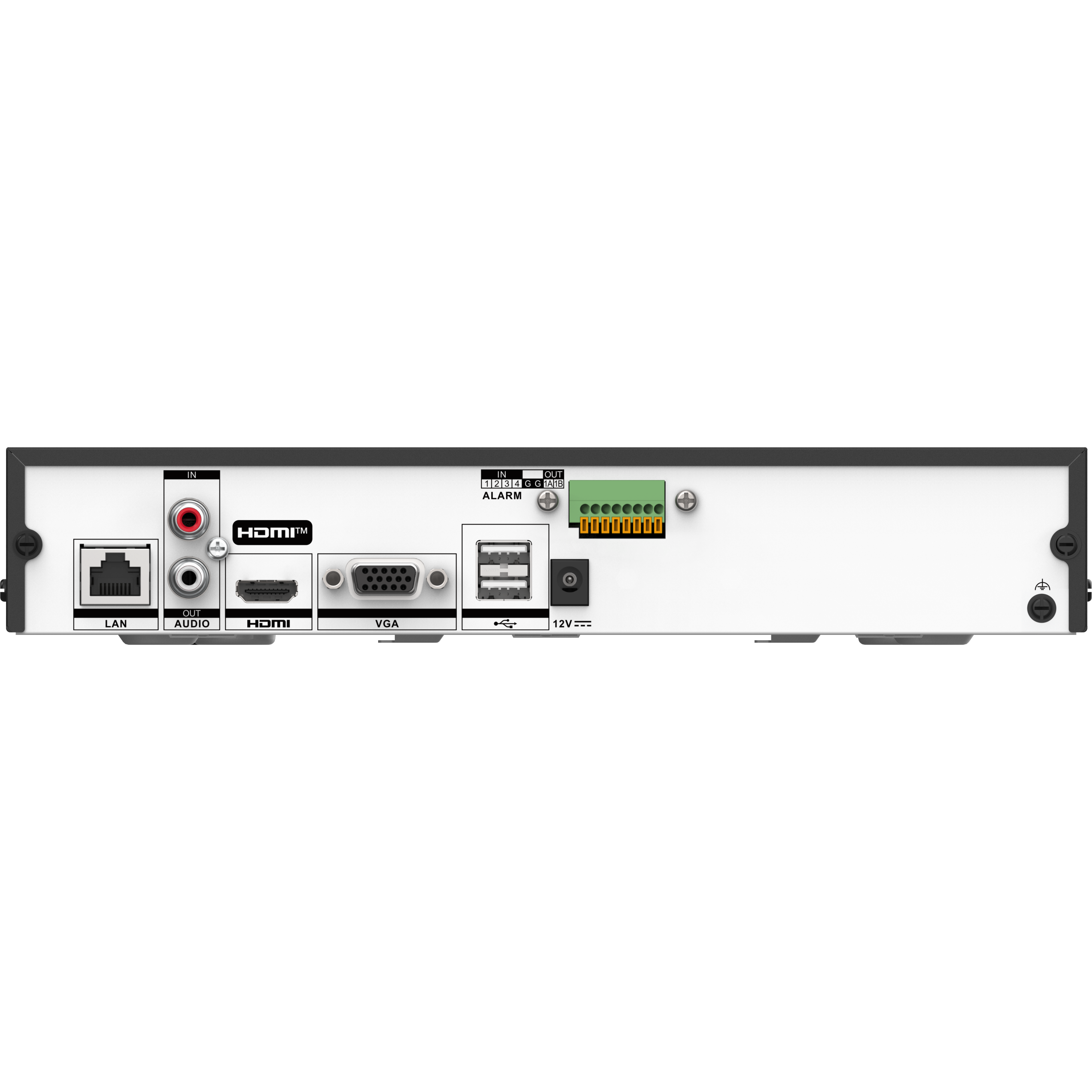

• HDMI output: 1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz
• Output mode: HDMI/VGA simultaneous output
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding capability: AI&4K Off: 8-ch@1080p(30fps) AI/4K On: 6-ch@1080p(30fps)
• Synchronous playback: 8-ch
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
• Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• SATA: 1 SATA interface
• HDD capacity: Up to 8TB capacity for each disk
• Alarm in/out: N/A (4/1 is optional)
• USB: 2 × USB 2.0
• Power supply: 12 VDC or ≤ 18 W
• Power consumption: ≤ 10 W (without enabling PoE)

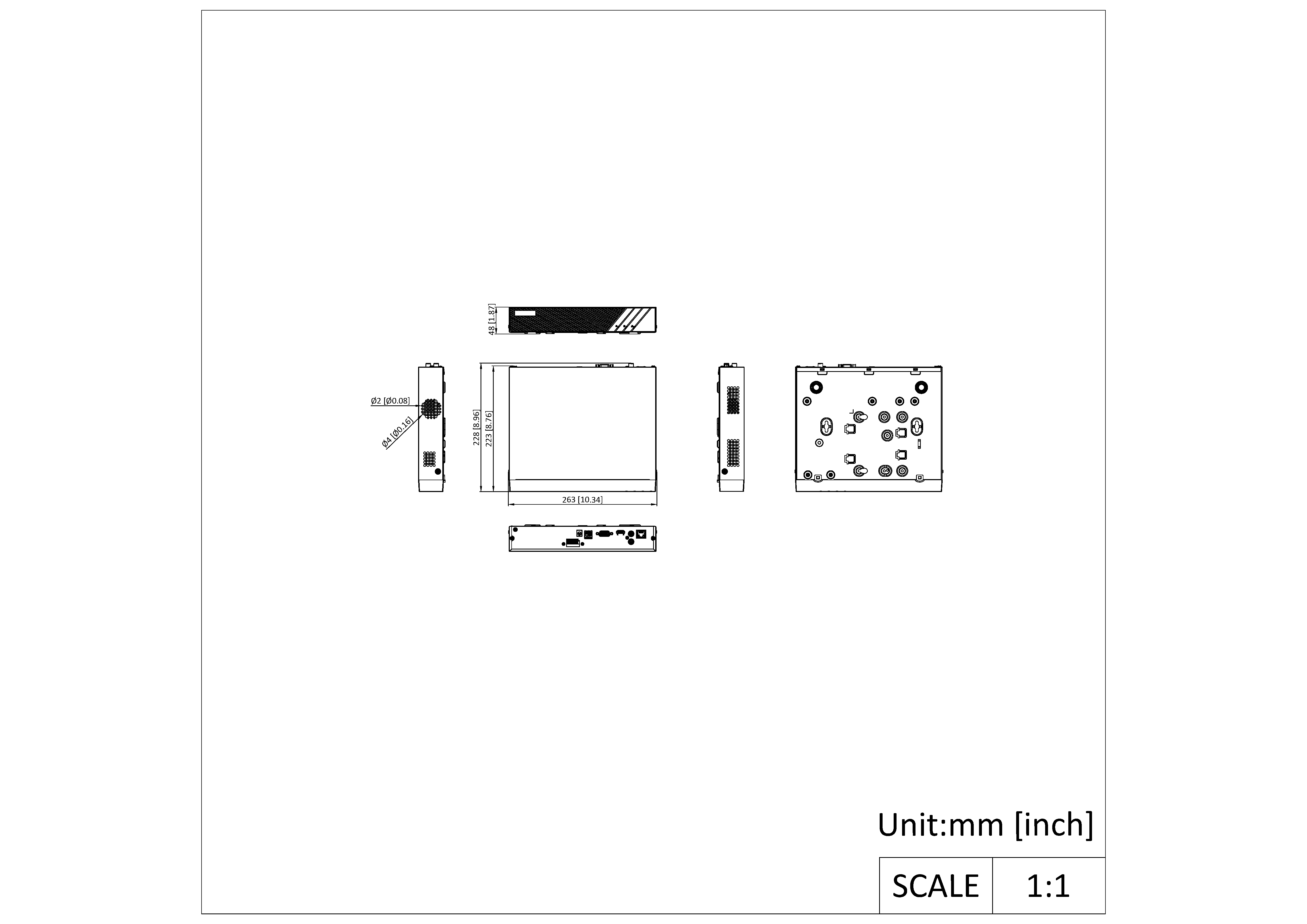

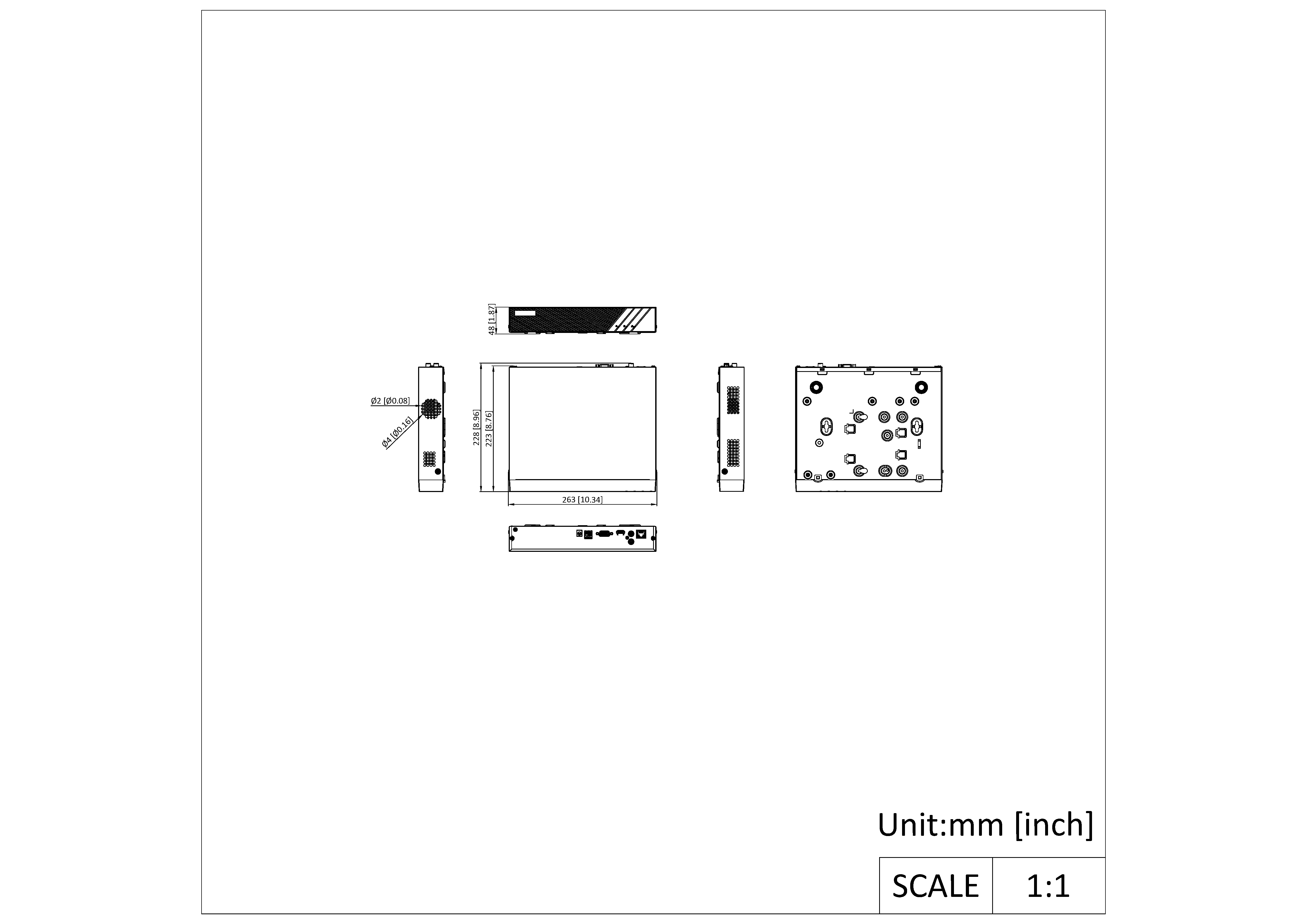

• Dimensions: 263 × 223 × 48 mm (10.34" × 8.76" × 1.87")
