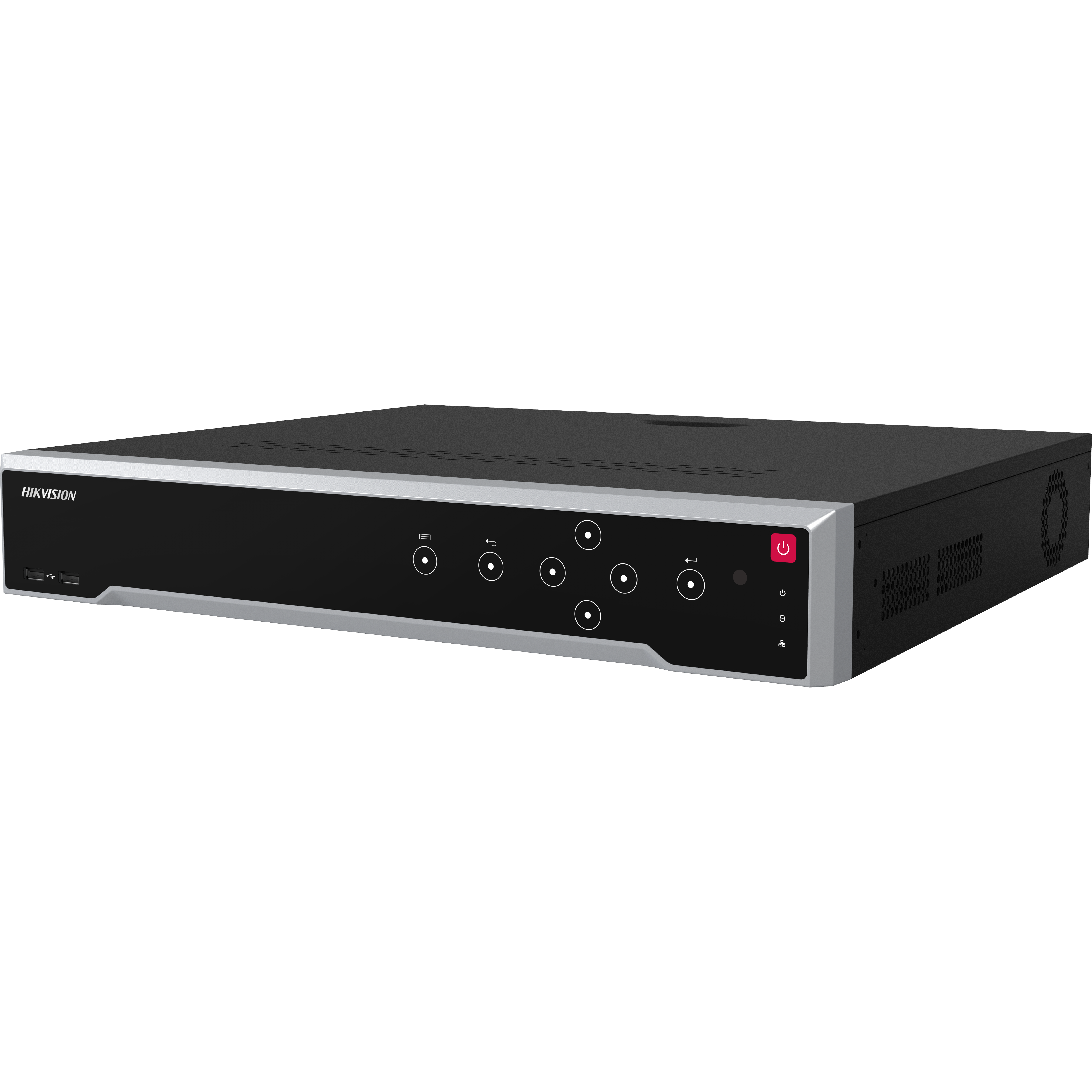

Hikvision DS-7732NI-M4 32-Channel 8K NVR (4 SATA) | 32-ch IP | 320 Mbps Incoming | 4 SATA | Up to 16TB per HDD | 8K HDMI

Hikvision 32-ch 1.5U 8K NVR. H.265+/H.265/H.264+/H.264 video formats; up to 32-ch IP camera inputs; up to 40 x 1080p@ 30fps decoding capacity.

Key Specifications

• H.265+/H.265/H.264+/H.264 video formats
• Up to 32-ch IP camera inputs
• Up to 40 x 1080p@ 30fps decoding capacity
• Up to 320 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• IP video input: 32-ch Up to 32 MP resolution
• Incoming bandwidth: 320 Mbps
• Outgoing bandwidth: 400 Mbps
• HDMI 1 output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• VGA output: 1920 × 1080/60Hz
• Output mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
• Recording resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding capability: 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 5-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);32-ch@2 MP(30 fps)
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• SATA: 4 SATA interfaces
• eSATA: 1 eSATA interface
• HDD capacity: Up to 16 TB capacity for each disk
• Alarm in/out: 16/9
• USB: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Power supply: 100 to 240 VAC, 50 to 60 Hz
• Power consumption: ≤ 15 W (without HDD )

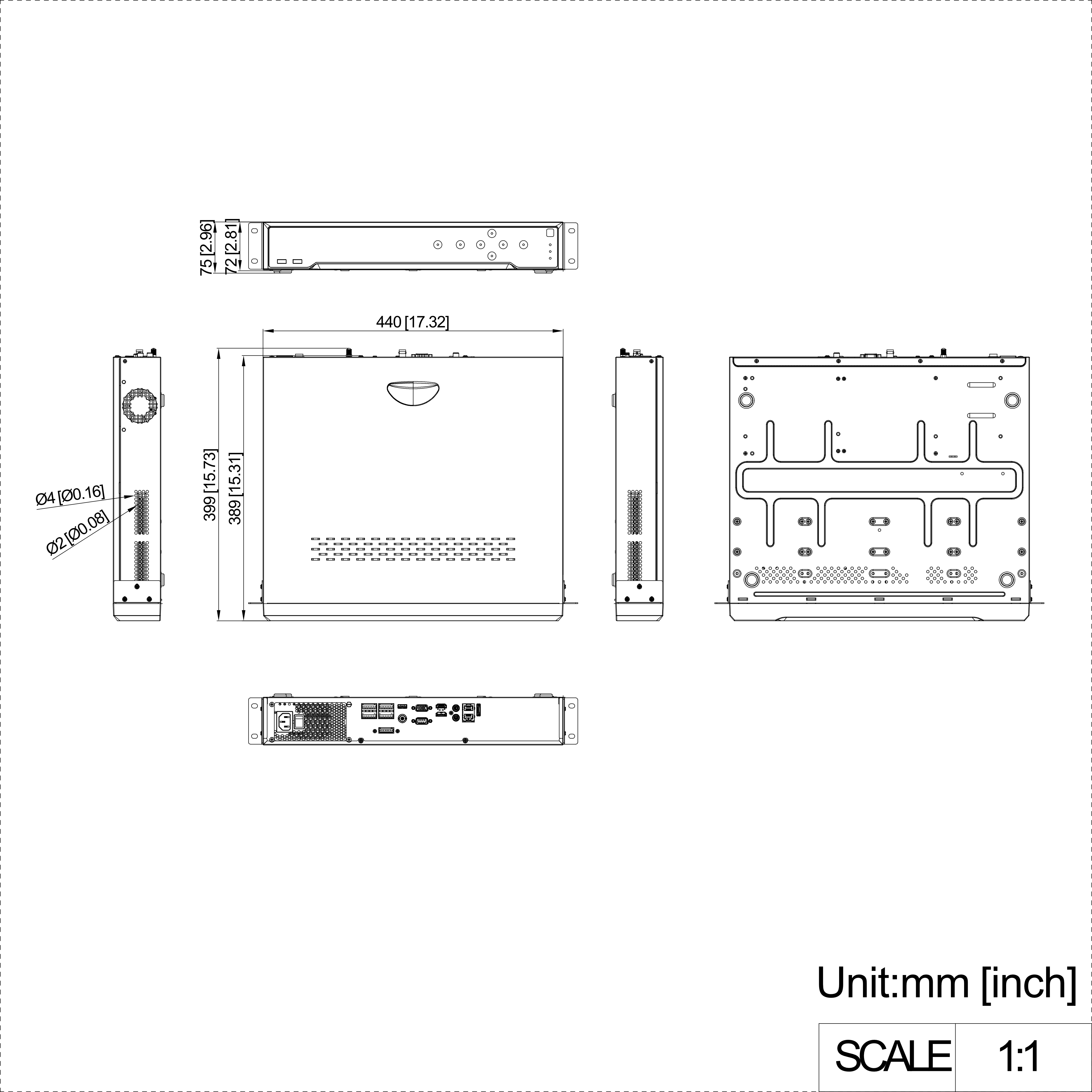

• Dimensions: 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
