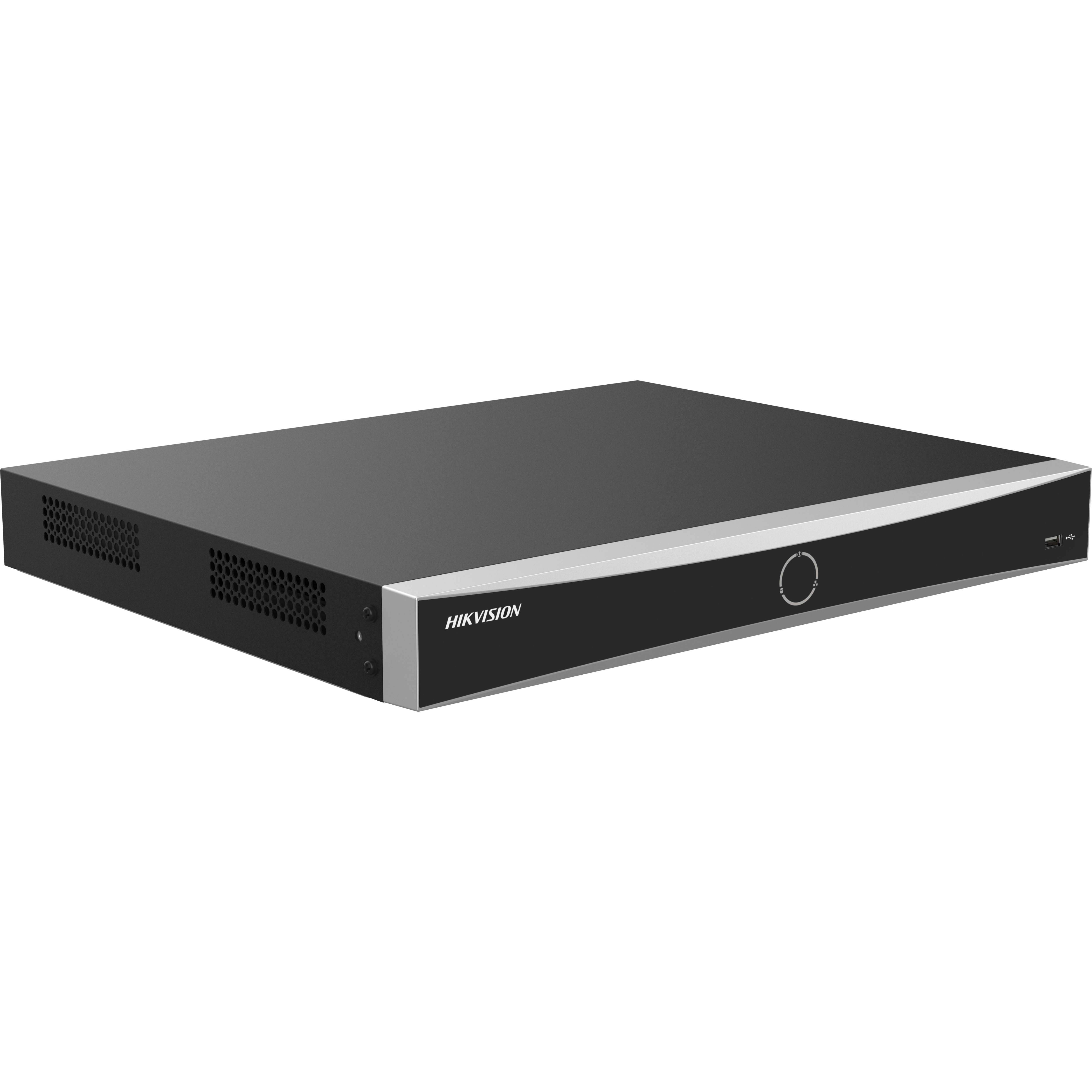

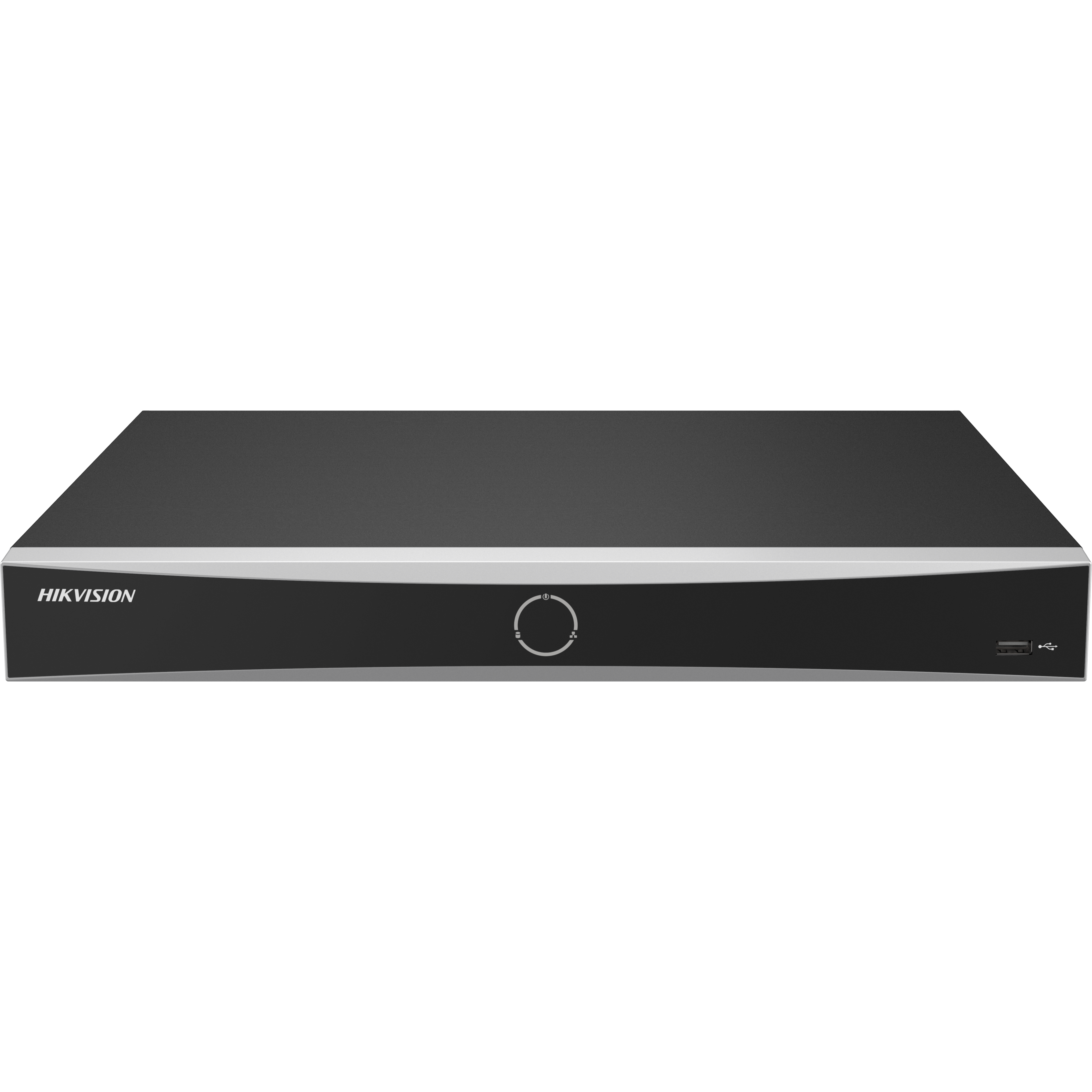

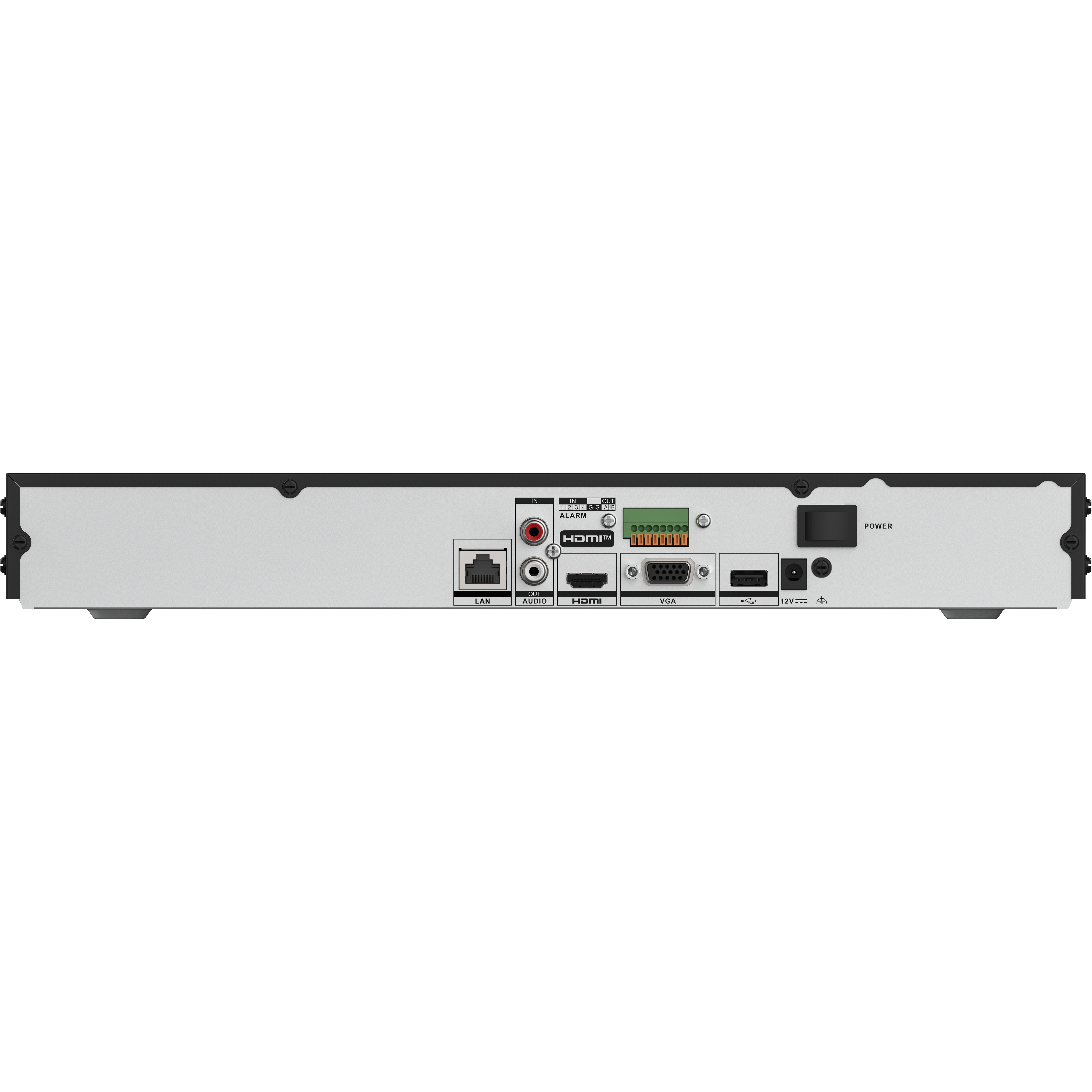

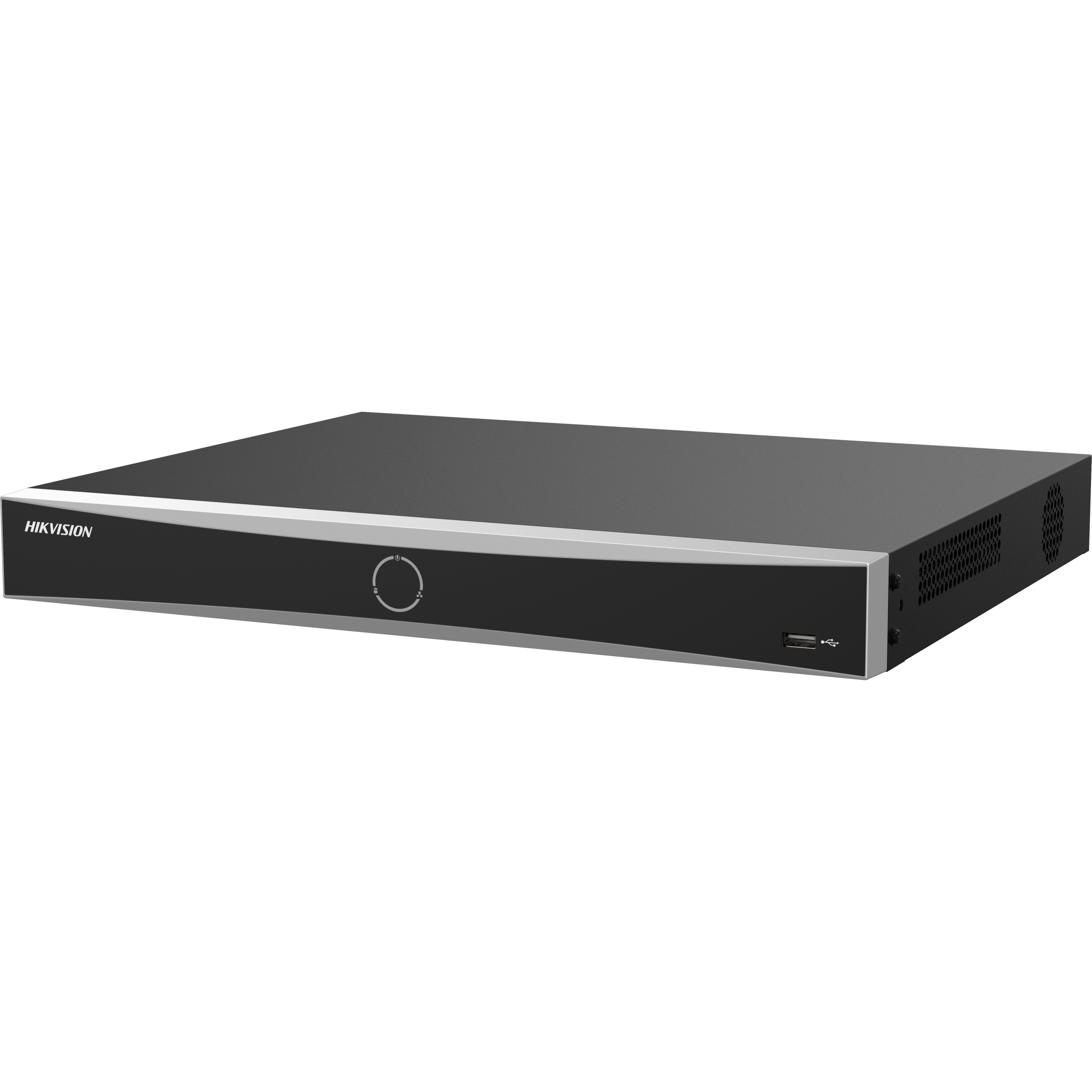

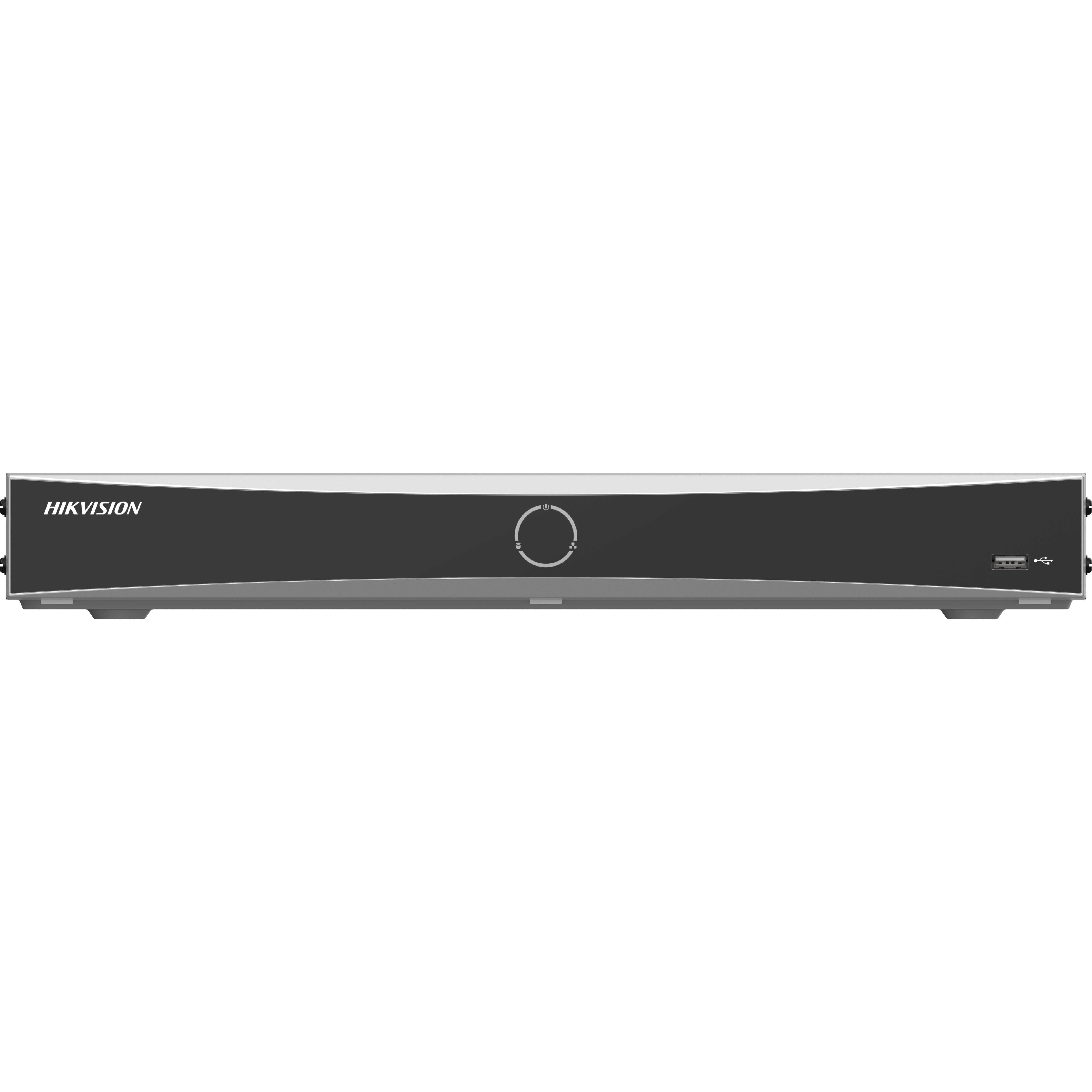

Hikvision DS-7616NXI-K2/VPro 16-Channel K VPro AcuSeek NVR | 16-ch IP | 160 Mbps Incoming | 2 SATA | Up to 16TB per HDD | 4K HDMI | AcuSense AI

Hikvision 16-ch 1U AcuSeek K VPro NVR. Up to 16-ch AcuSeek and AcuSearch function; adopt Hikvision AcuSense technology to minimize manual effort and security costs; accurate perimeter protection effectively reduces false alarms.

Key Specifications

• Up to 16-ch AcuSeek and AcuSearch function
• Adopt Hikvision AcuSense technology to minimize manual effort and security costs
• Accurate perimeter protection effectively reduces false alarms
• Automatic cameras connection and configuration
• Up to 16-ch IP camera inputs
• Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 16-ch@2 MP decoding capacity
• H.265+/H.265/H.264+/H.264 video formats
• Up to 160 Mbps incoming bandwidth
• IP video input: 16-ch
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 160 Mbps
• Facial detection: Face picture comparison, human face capture, face picture search
• HDMI output: 4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz，UXGA（1600×1200）/60Hz，SXGA（1280×1024）/60Hz，720P（1280×720）/60Hz
• VGA output: 1080P（1920×1080）/60Hz，UXGA（1600×1200）/60Hz，SXGA（1280×1024）/60Hz，720P（1280×720）/60Hz
• Output mode: HDMI/VGA independent output
• Recording resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding capability: AI on: 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 12-channel 2 MP@30fps AI off: 4-channel 12 …
• Synchronous playback: 16-ch
• Audio input: Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Network interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• SATA: 2 SATA interfaces
• HDD capacity: Up to 16 TB capacity for each HDD
• Alarm in/out: 4/1
• USB: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Power supply: 12 VDC, 3.33 A
• Power consumption: ≤ 15 W (without HDD)

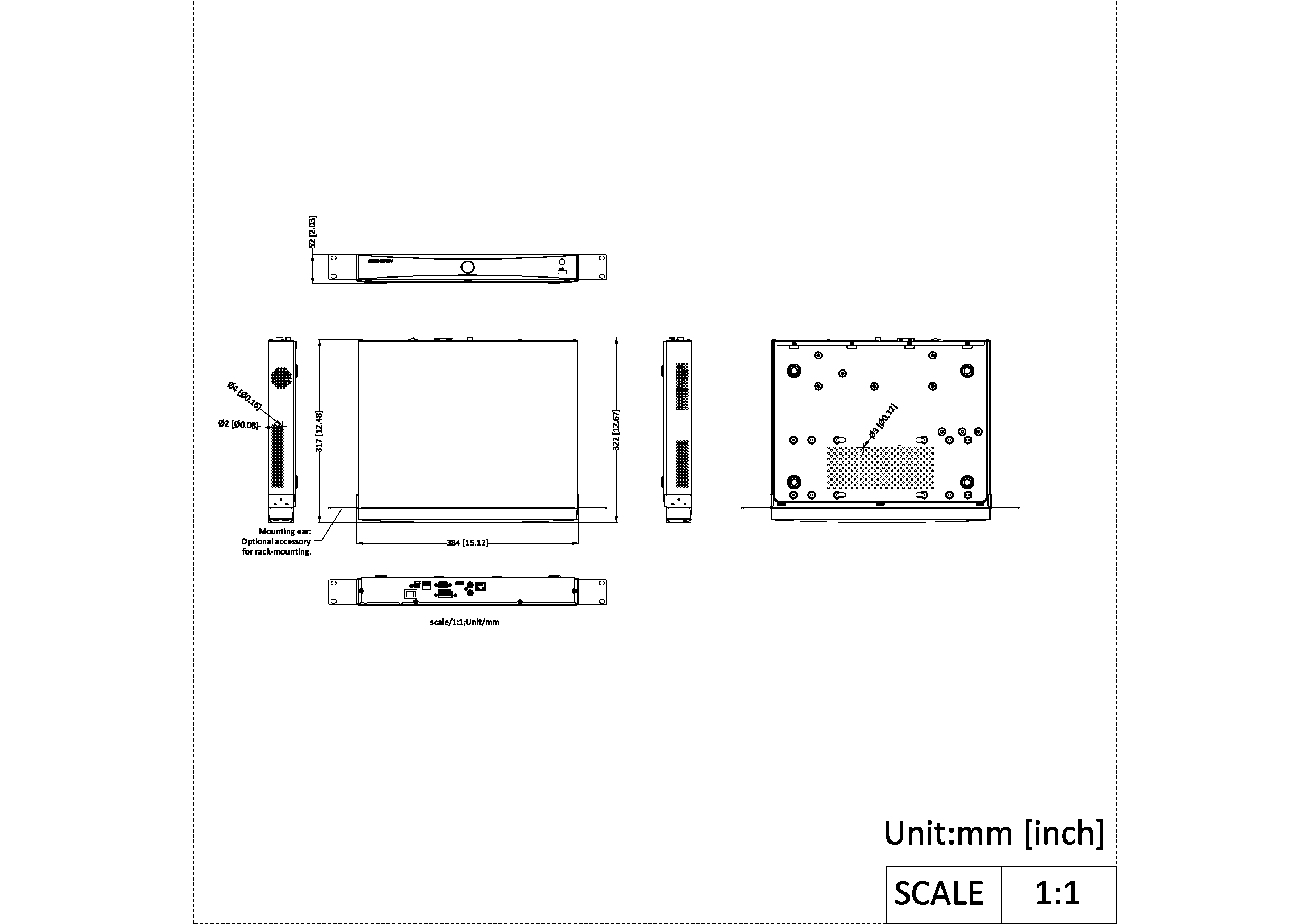

• Dimensions: 384 mm × 317 mm × 52 mm (15.1 × 12.5 × 2.0 inch)
