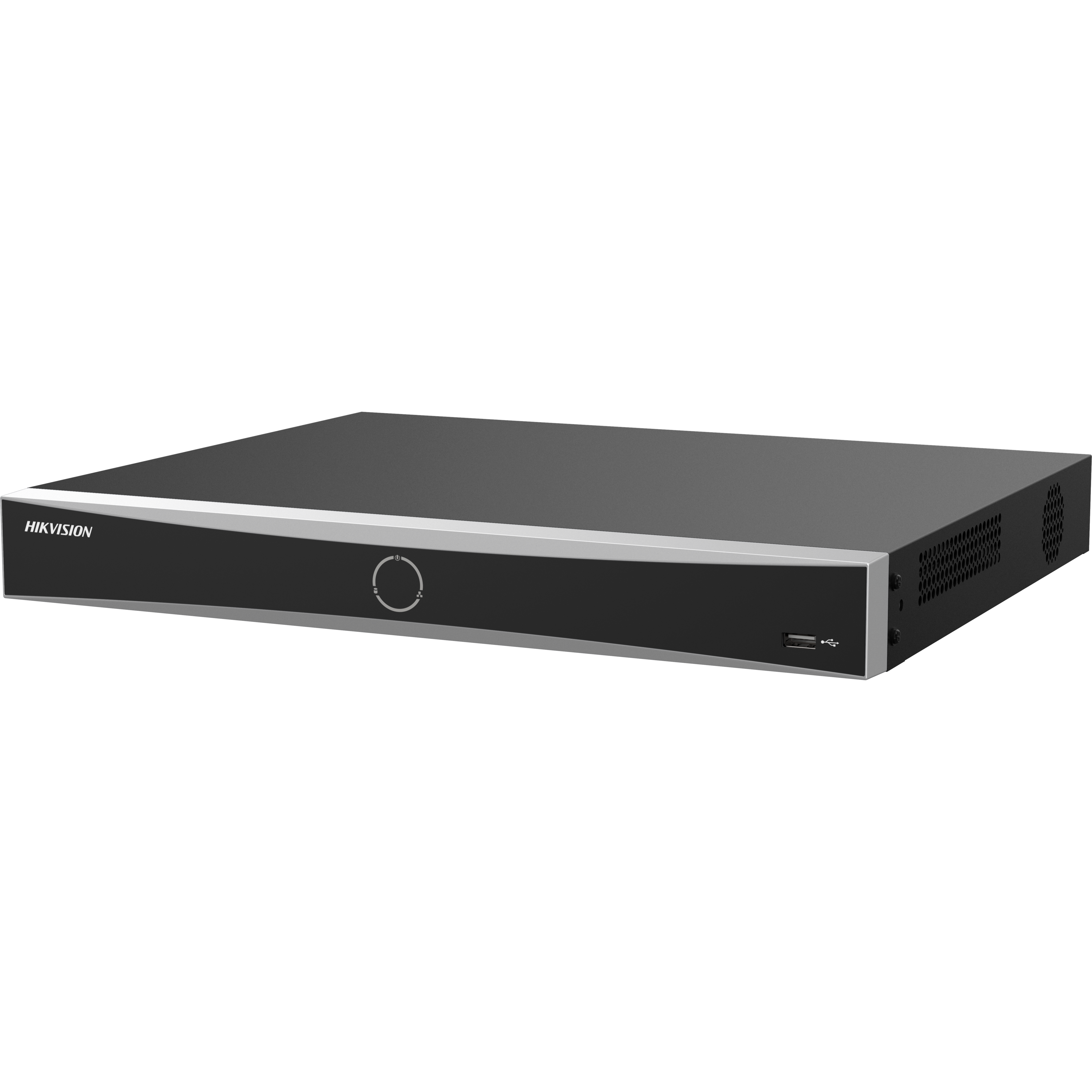

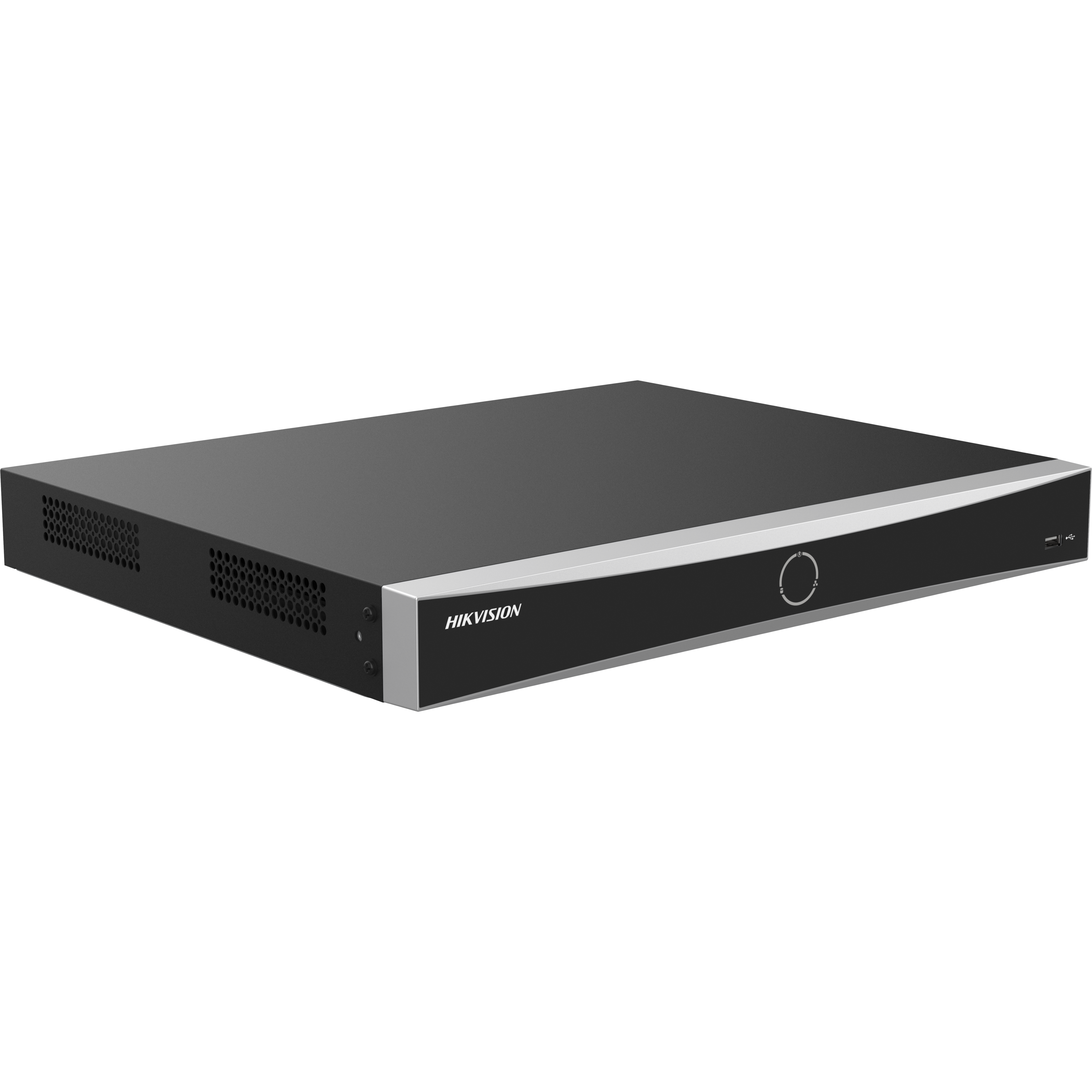

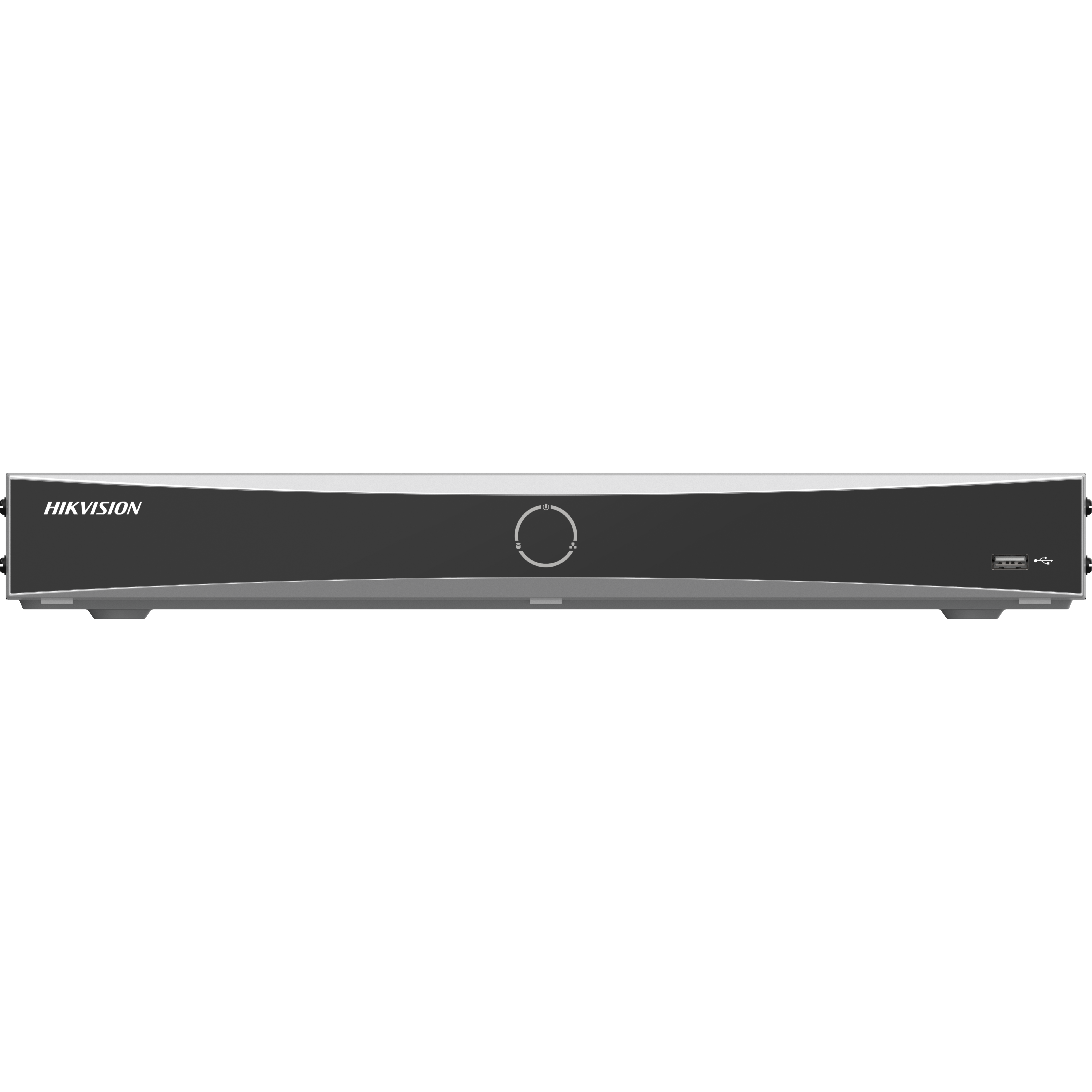

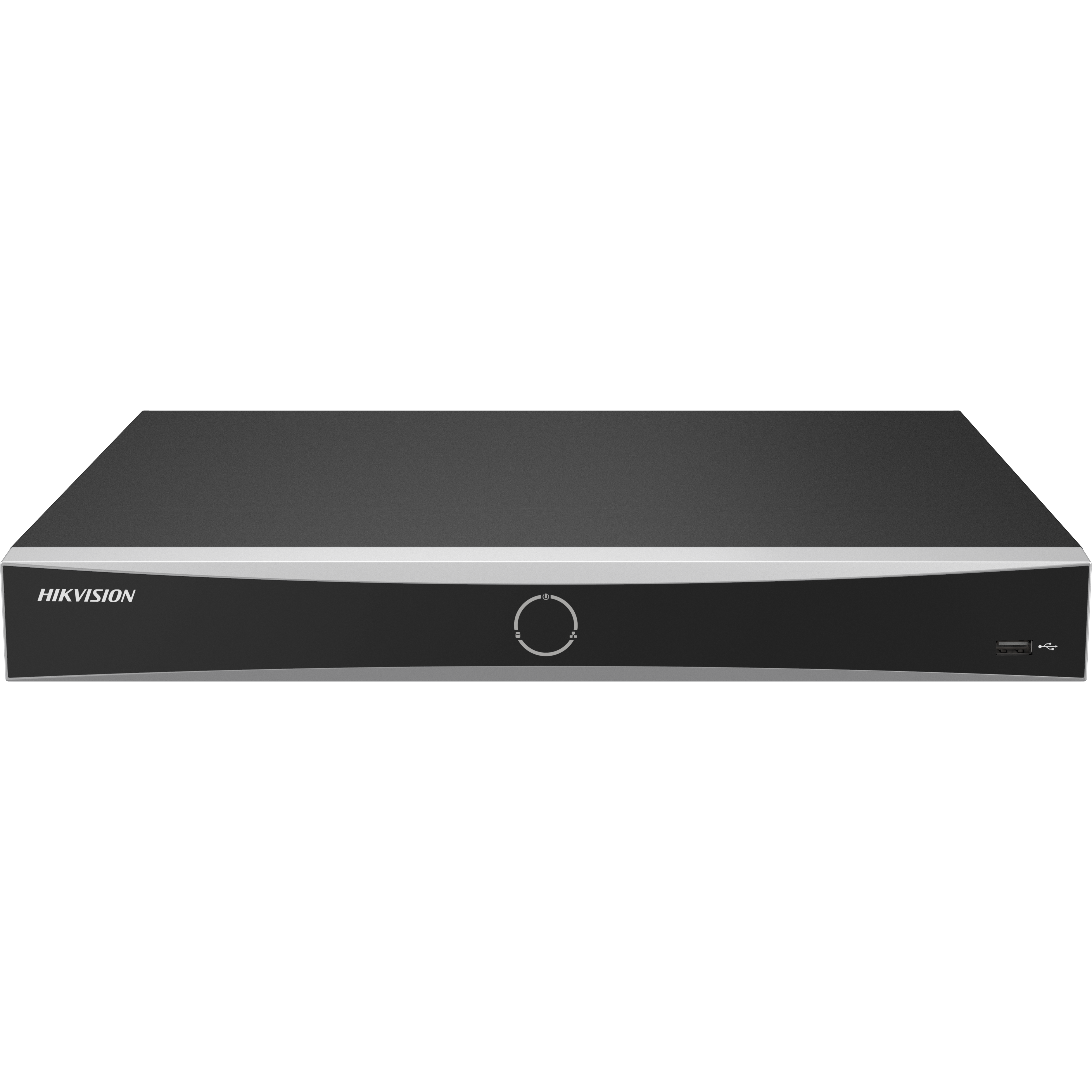

Hikvision DS-7616NXI-K2(E) 16-Channel K Series AcuSense NVR | 16-ch IP | 160 Mbps Incoming | 2 SATA | Up to 16TB per HDD | 4K HDMI | AcuSense AI

Hikvision 16-ch 1U K Series AcuSense 4K NVR. Adopt Hikvision AcuSense technology to minimize manual effort and security costs; efficient playback with AcuSearch technology; accurate perimeter protection effectively reduces false alarms.

Key Specifications

• Adopt Hikvision AcuSense technology to minimize manual effort and security costs
• Efficient playback with AcuSearch technology
• Accurate perimeter protection effectively reduces false alarms
• Automatic cameras connection and configuration
• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 3-ch@12 MP or 5-ch@8 MP or 10-ch@4 MP or 16-ch@2 MP decoding capacity
• Up to 160 Mbps incoming bandwidth
• IP video input: 16-ch
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 160 Mbps
• Facial detection: Face picture comparison, human face capture, face picture search
• HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Output mode: HDMI/VGA independent output
• Recording resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding capability: AI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 …
• Synchronous playback: 16-ch
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

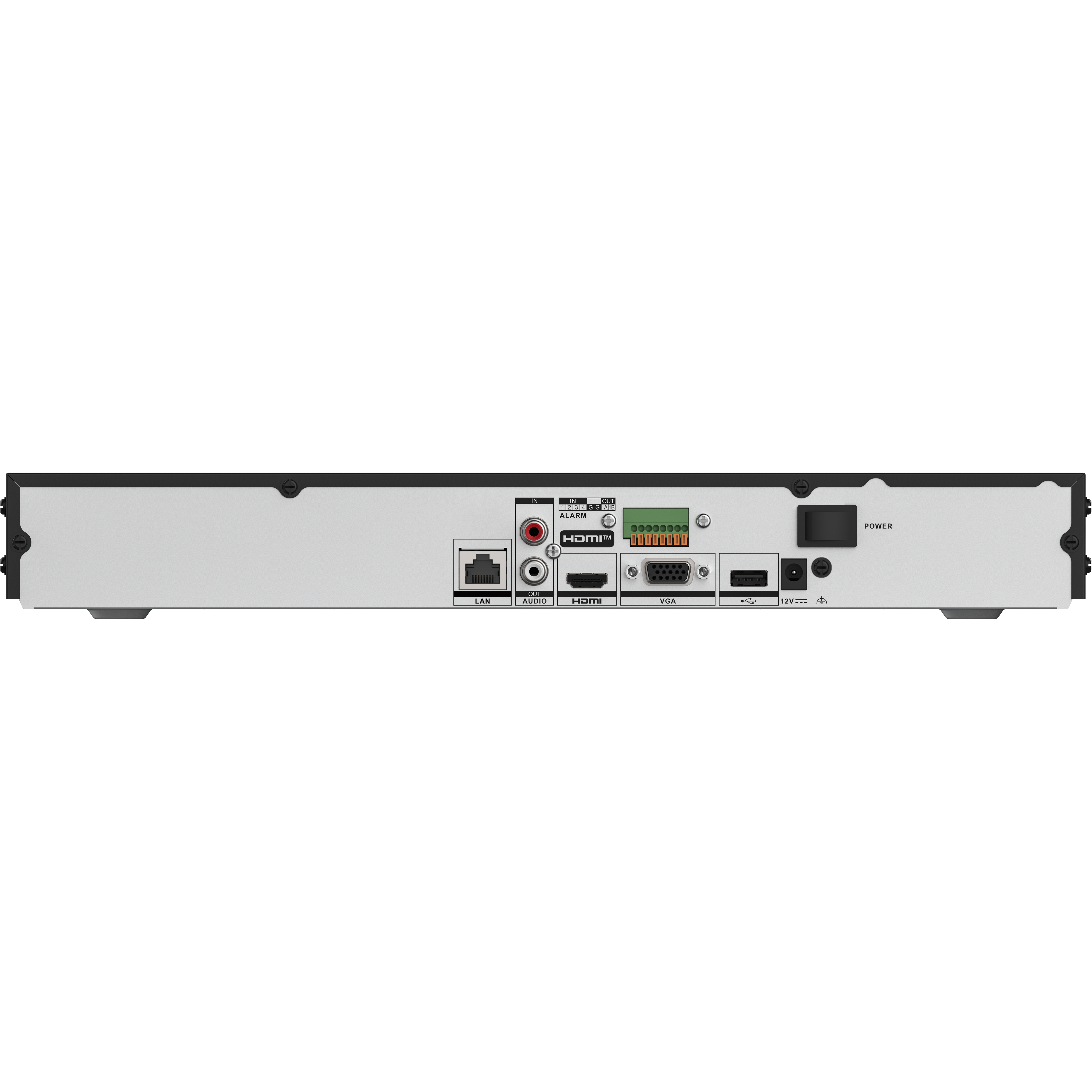

• Network interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• SATA: 2 SATA interfaces
• HDD capacity: Up to 16 TB capacity for each HDD
• Alarm in/out: 4/1
• USB: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Power supply: 12 VDC, 3.33 A
• Power consumption: ≤ 15 W (without HDD)

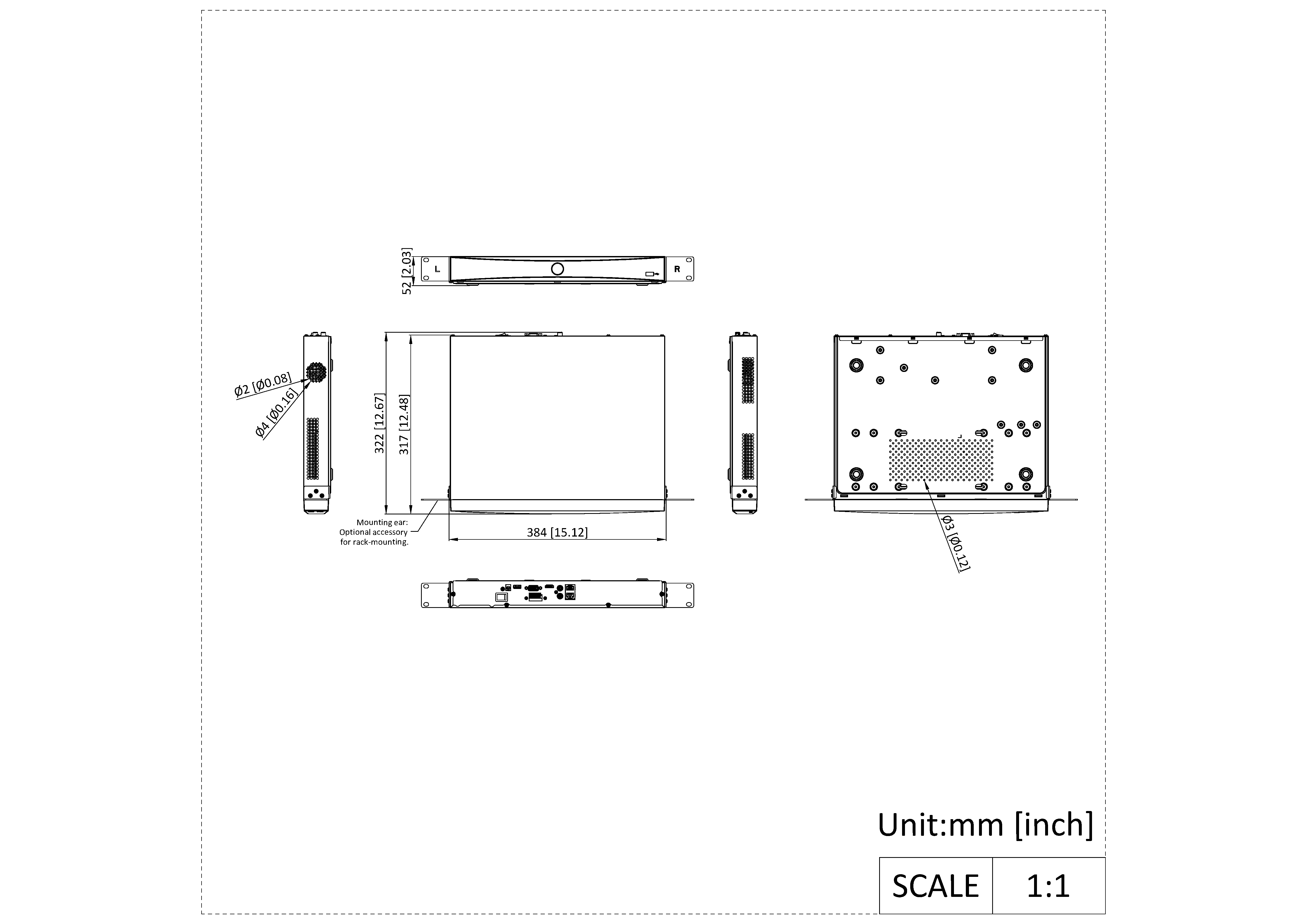

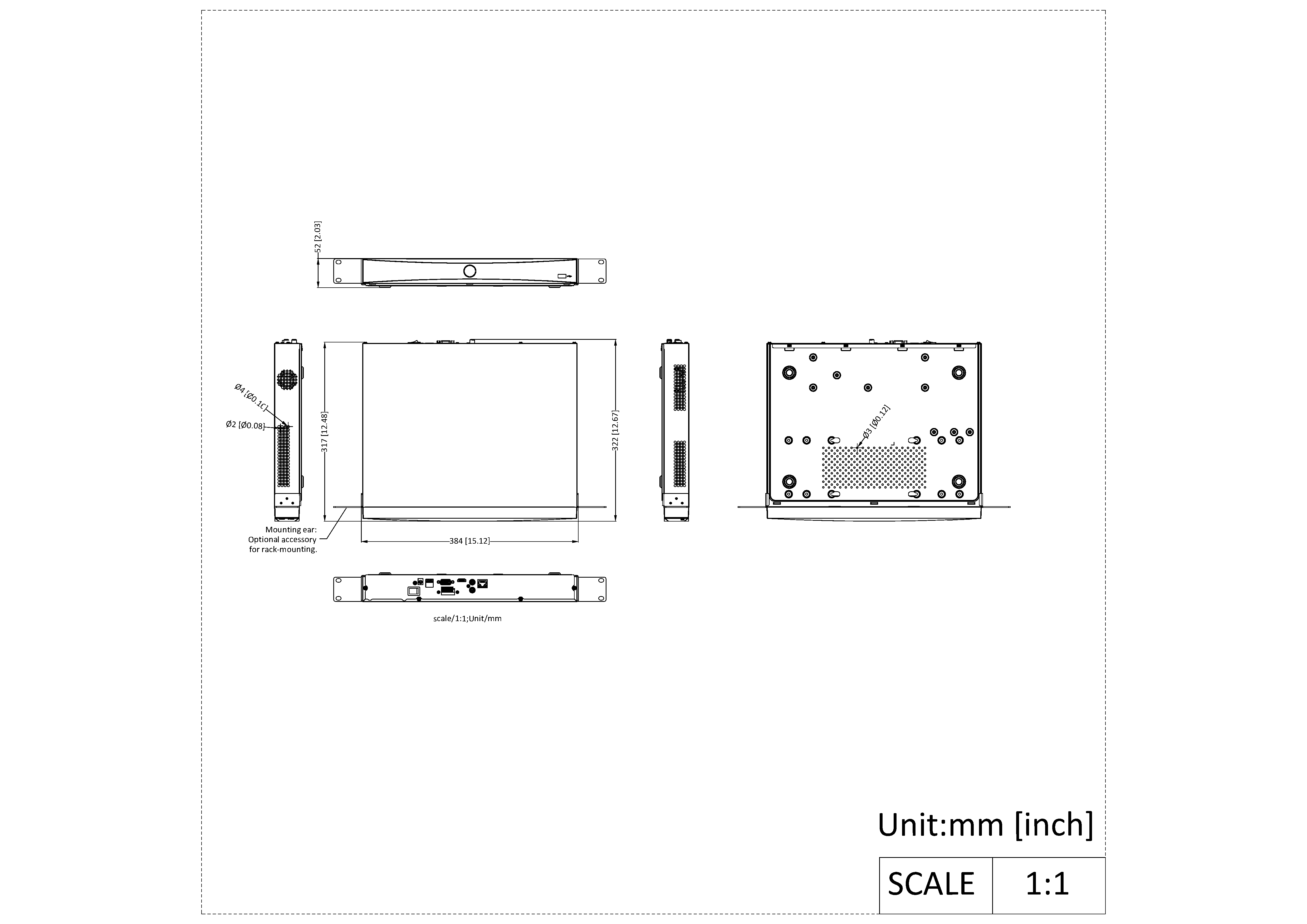

• Dimensions: 384 mm × 317 mm × 52 mm (15.12 × 12.48 × 2.03 inch)
