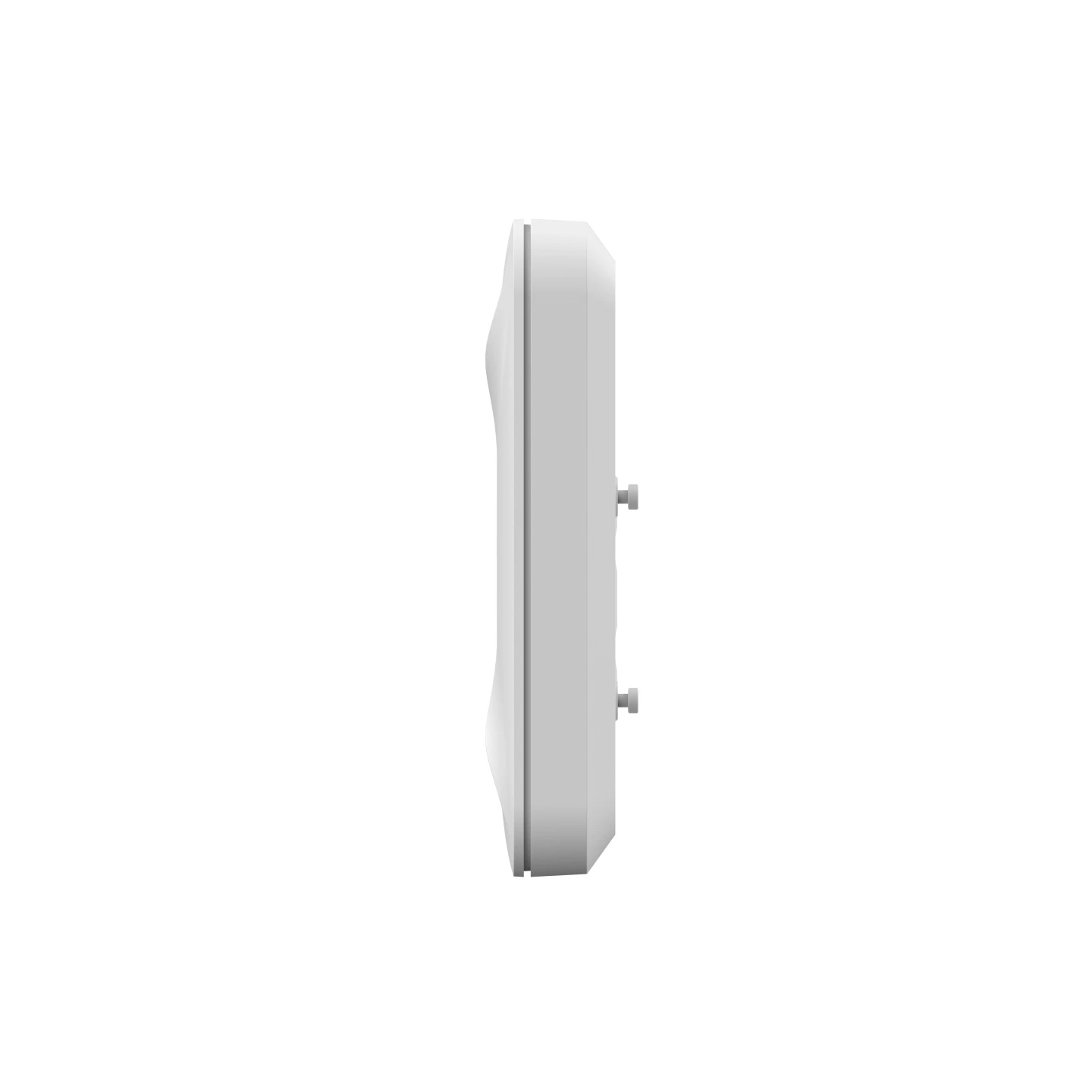

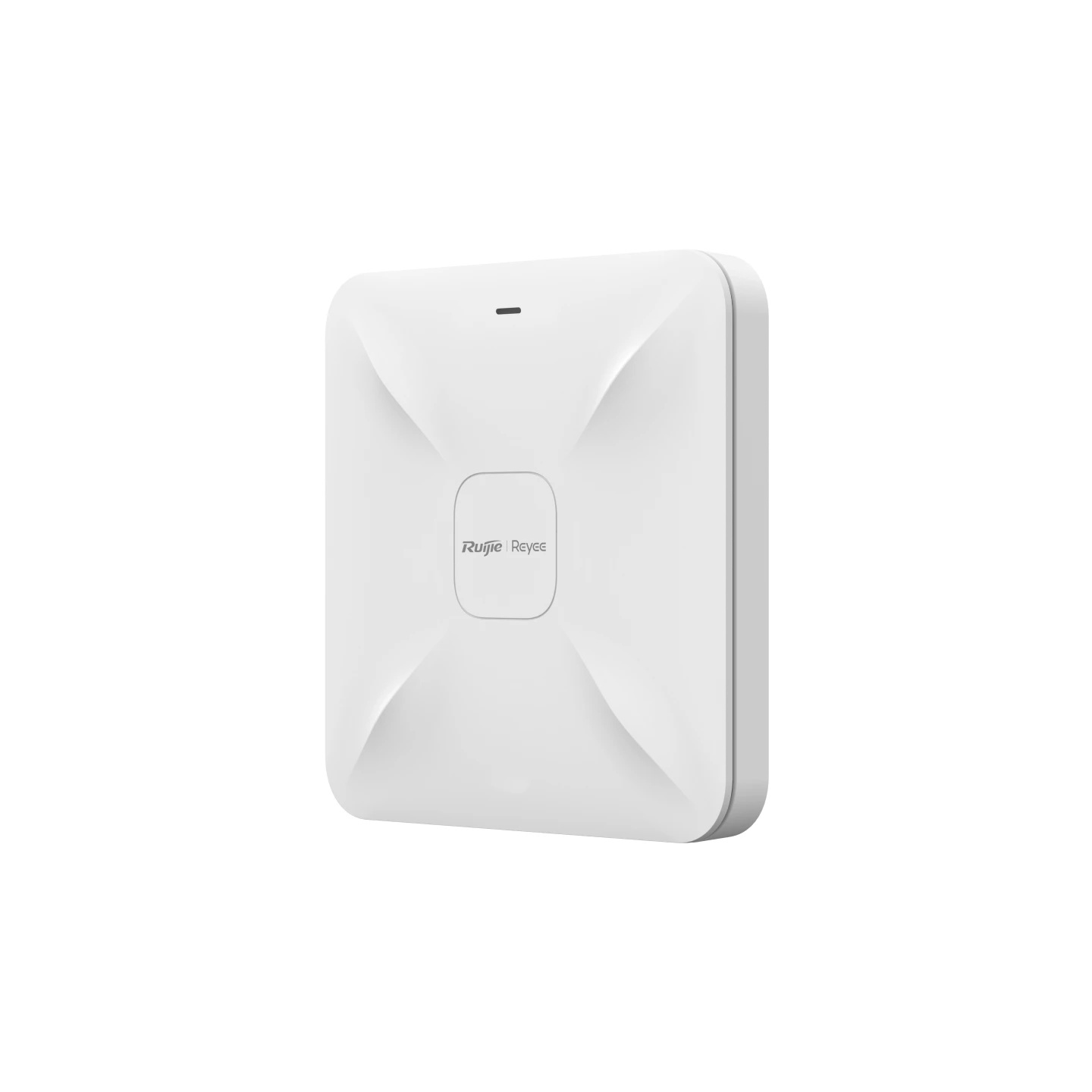

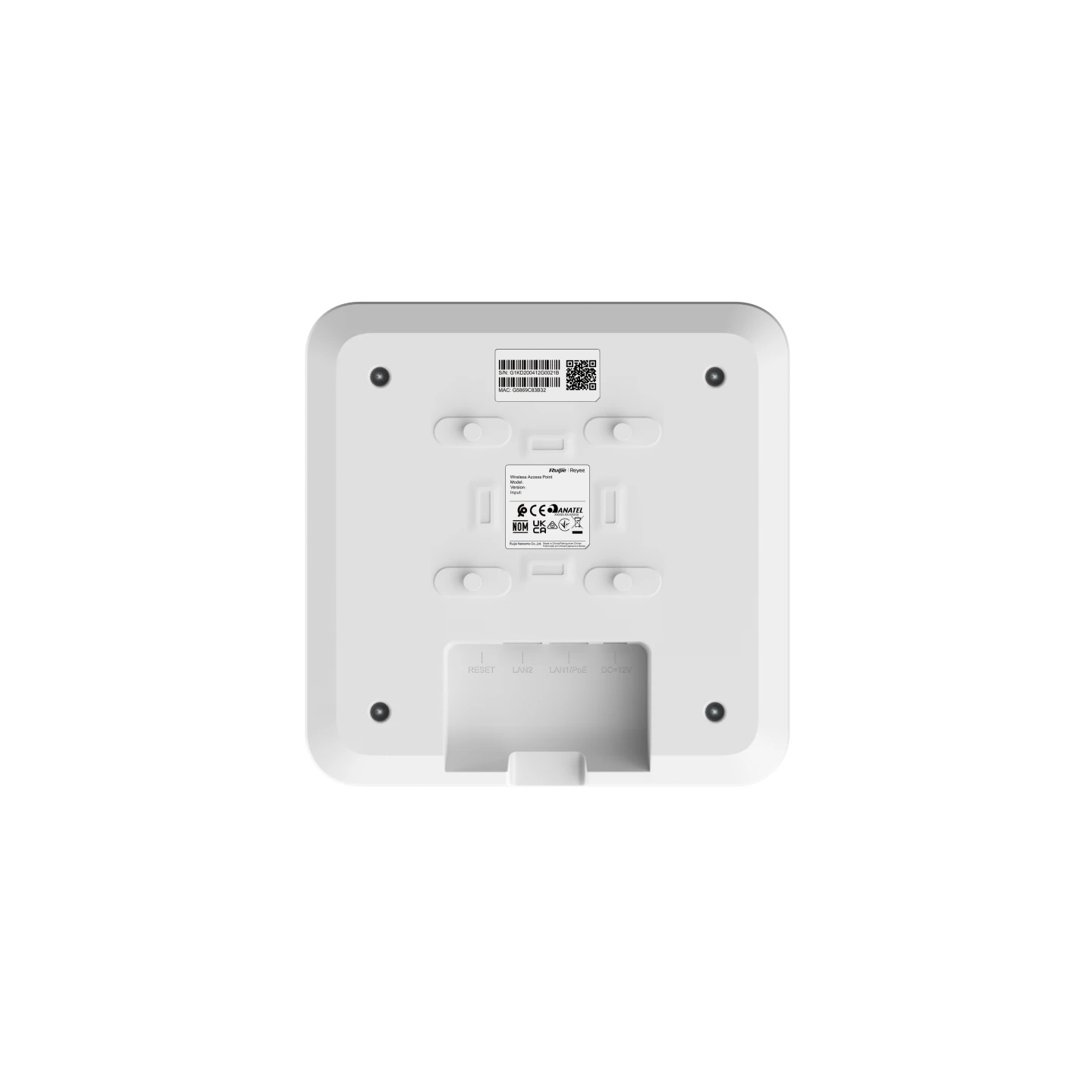

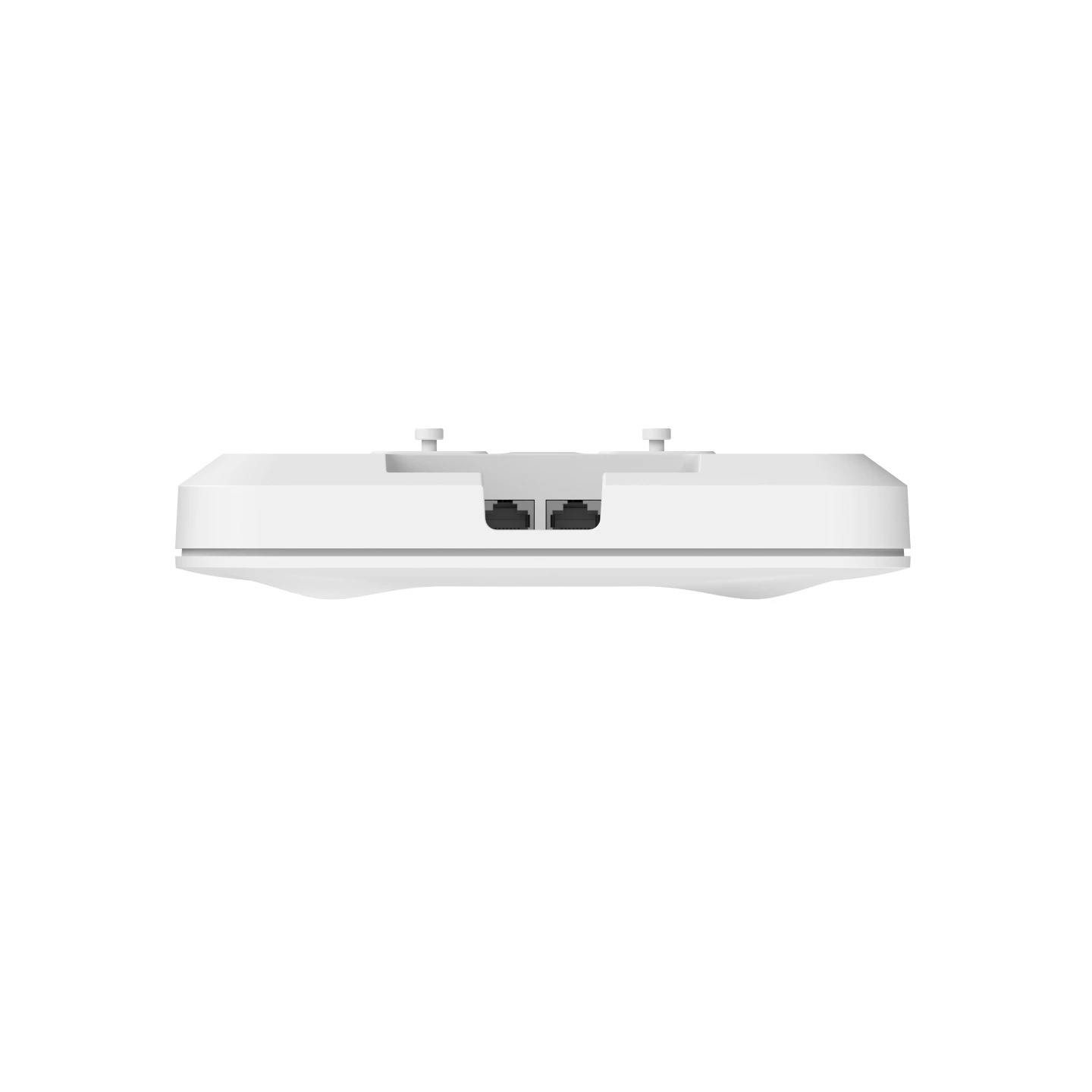

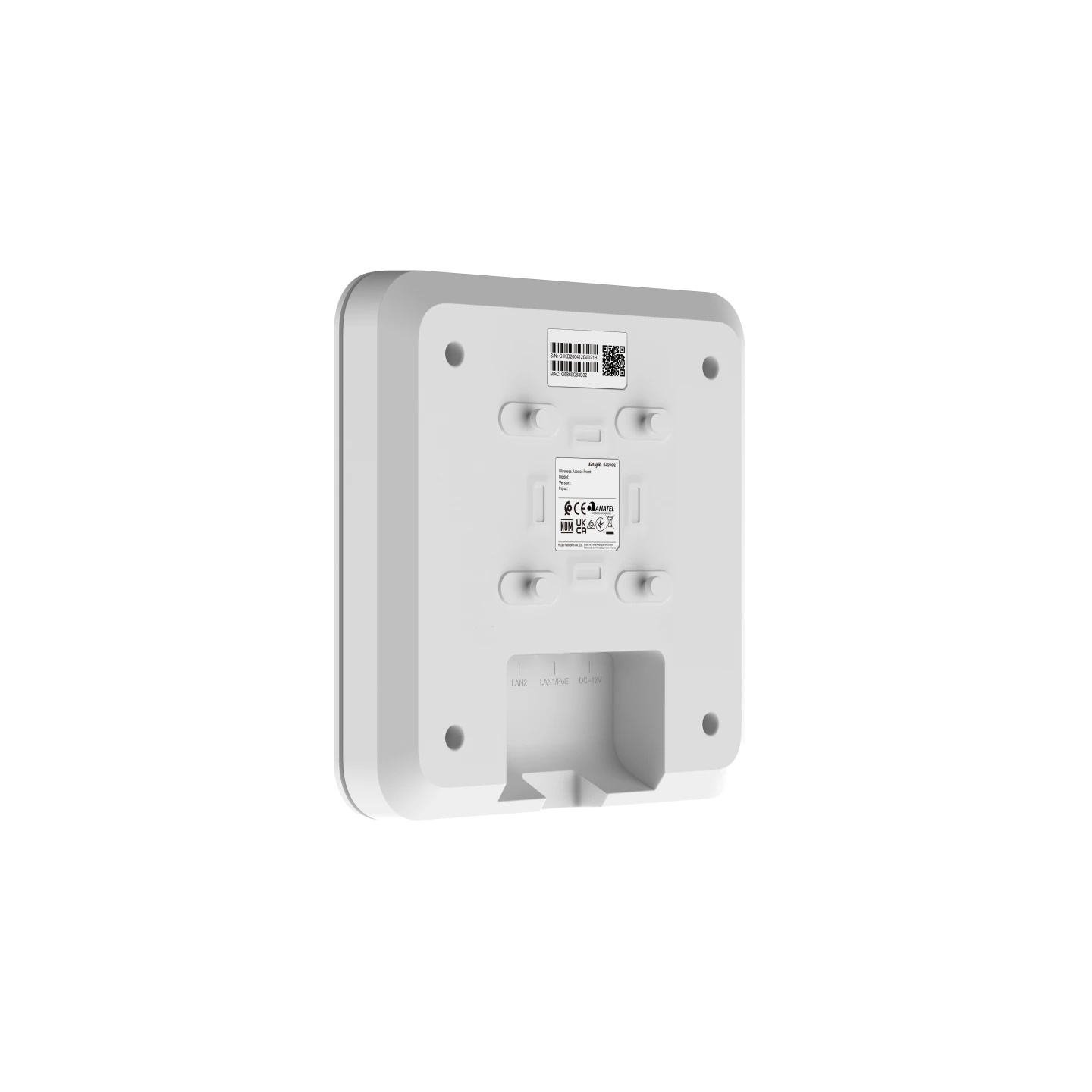

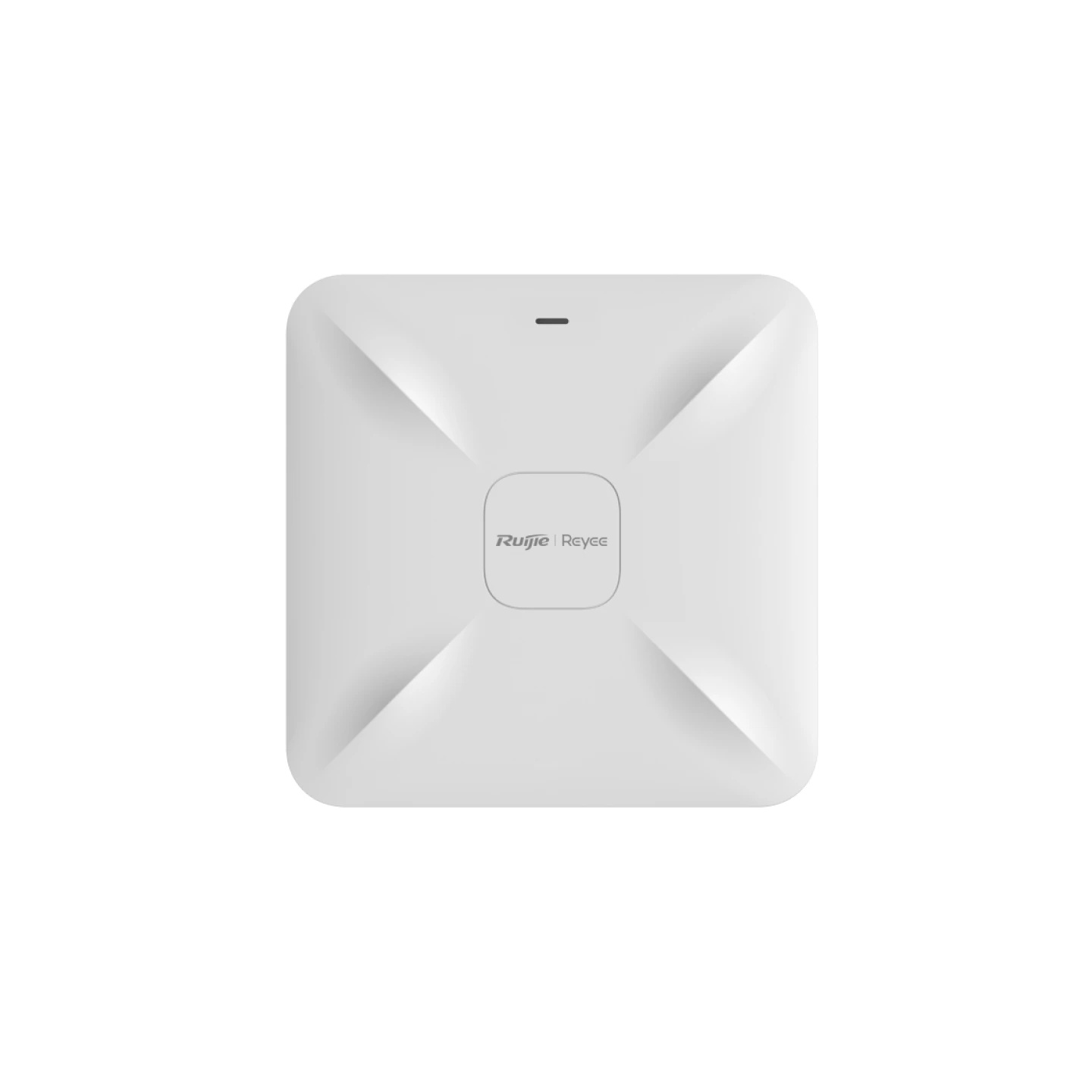

Ruijie Reyee RG-RAP2200(F) AC1300 Wi-Fi 5 Dual-Band Ceiling Access Point

Ruijie Reyee RG-RAP2200(F) AC1300 Wi-Fi 5 Dual-Band Ceiling Access Point. AC1300 Dual Band Ceiling Mount Access Point 867Mbps at 5GHz + 400Mbps at 2.4GHz; 2 10/100base-t Ethernet uplink port.

Key Specifications

• AC1300 Dual Band Ceiling Mount Access Point
• 867Mbps at 5GHz + 400Mbps at 2.4GHz
• 2 10/100base-t Ethernet uplink port
• Product Type: Ceiling AP
• Radio design: Dual-radio; 4 spatial streams; 2.4 GHz: 2 x 2, MIMO; 5 GHz: 2 x 2, MIMO
• Maximum wireless data rate: 1266 Mbps
• 5 GHz wireless data rate: 866 Mbps
• 2.4 GHz wireless data rate: 400 Mbps
• Antenna: 2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 2 built-in omnidirectional antennas
• Product dimensions (W x D x H): 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
• Color: White
• Weight: ≤ 0.45 kg (0.99 lbs.) (without packaging materials)
• Number of 10/100BASE-T ports: 2
• Power supply: DC power adapter; PoE/PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
• Local power supply: Yes, one DC power connector (12 V, 1.5 A)
• Maximum power consumption: 12.95 W
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Mounting options: Ceiling/Wall
• Maximum number of associated wireless clients: 64 (2.4 GHz); 110 (5 GHz); 110 (2.4 GHz and 5 GHz enabled)
• Maximum number of devices that can be managed: 150
• Warranty: 3 years
• Management: Ruijie Cloud / Reyee app, local eWeb
