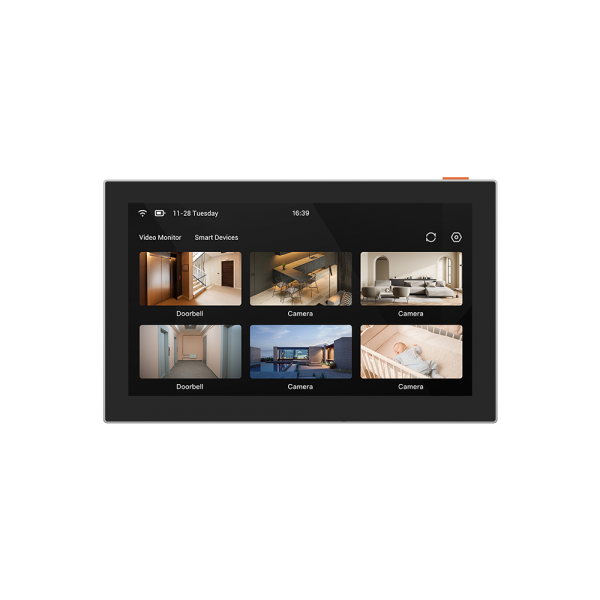

EZVIZ SD7 7-inch Smart Door Viewer Screen

7-inch touchscreen smart display for your EZVIZ system: live view, playback and two-way talk with cameras and doorbells, on a rechargeable battery.

Key features

• 6.97″ IPS touchscreen (1024 × 600)
• Live view and playback from up to 30 EZVIZ devices
• Two-way talk with doorbells and cameras
• 4,600 mAh rechargeable battery (Type-C)
• 2.4 GHz Wi-Fi; app remote control
• Slim 15.6 mm body, easy install

Key Specifications

• Model: CS-SD7-R100-1WTC

Screen

• Screen size: 6.97 inch
• Resolution: 1024 × 600
• Touch Screen: Supports
• Screen Type: IPS Full Screen

Battery

• Battery Capacity: 4600 mAh

Interface

• Audio Input: Built-in high-sensitivity microphone
• Audio Output: Built-in high-power speaker
• Button: One-switch button

Connectivity

• Maximum Access Pixels: Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade)
• Connected Device: 4K (Playback supports 5MP maximum)

Wireless Parameters

• Wireless Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz

General Specification

• Operating Temperature: 0°C to 40°C
• Operating Humidity: less than 95% (No condensation)

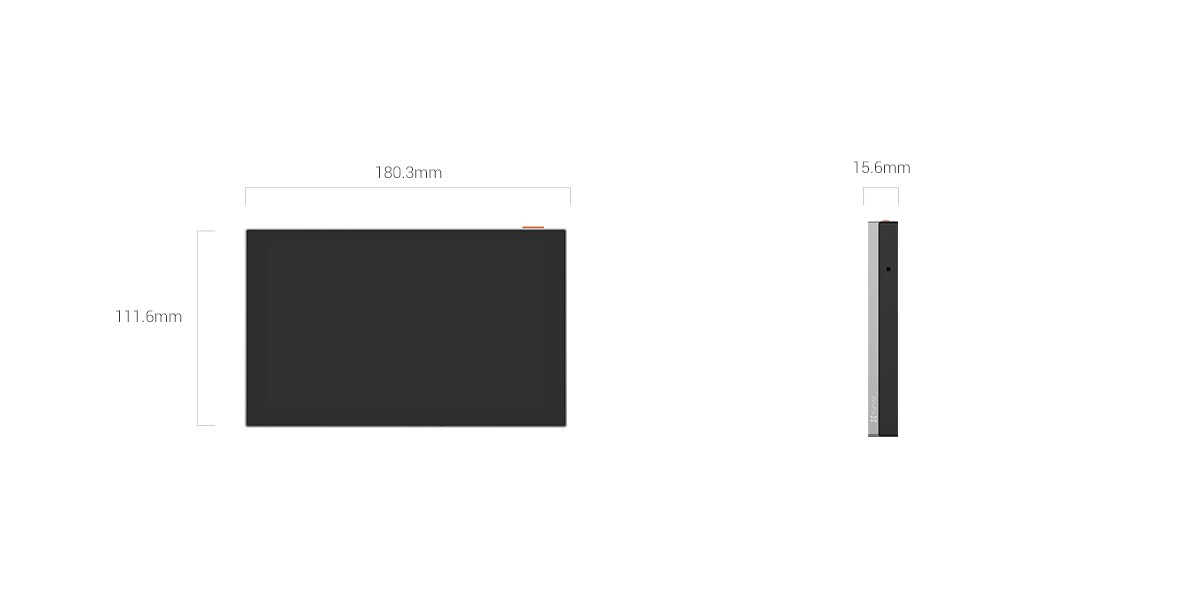

• Product Size: 180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)
• In the box: SD7 Smart Screen
• Certifications: CE / WEEE / RoHS / REACH
