EZVIZ H9c Dual-Lens 2K Outdoor Camera

Dual-lens outdoor camera: a fixed wide lens and a pan-tilt lens cover two zones at once, with co-detection auto tracking and colour night vision.

Key features

• Dual 2K lenses (2.8 mm fixed wide + 6 mm pan-tilt)
• Co-detection: fixed lens spots, PT lens tracks
• AI human/vehicle shape detection
• Smart colour night vision; IR up to 30 m
• Two-way calling; two patrol modes
• Weatherproof; microSD up to 512 GB

Key Specifications

• Model: CS-H9c-R100-8H33WKFL

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
• PT Angle: Pan: 350°, Tilt: 80°
• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR

Video & Audio

• Max Resolution: 2304 × 1296
• Video Compression: H.265 / H.264

Network

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

• Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
• Auto Tracking: Supports
• Customized Alert Area: Supports
• Two-way Talk: Supports
• Preset Locations: Supports

Storage

• Local Storage: Supports microSD Card (Up to 512 GB)
• Cloud Storage: Supports EZVIZ CloudPlay storage

General

• Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
• IP Grade: Weatherproof Design
• Power Supply: DC 12V/1.5A
• Power Consumption: MAX. 12W

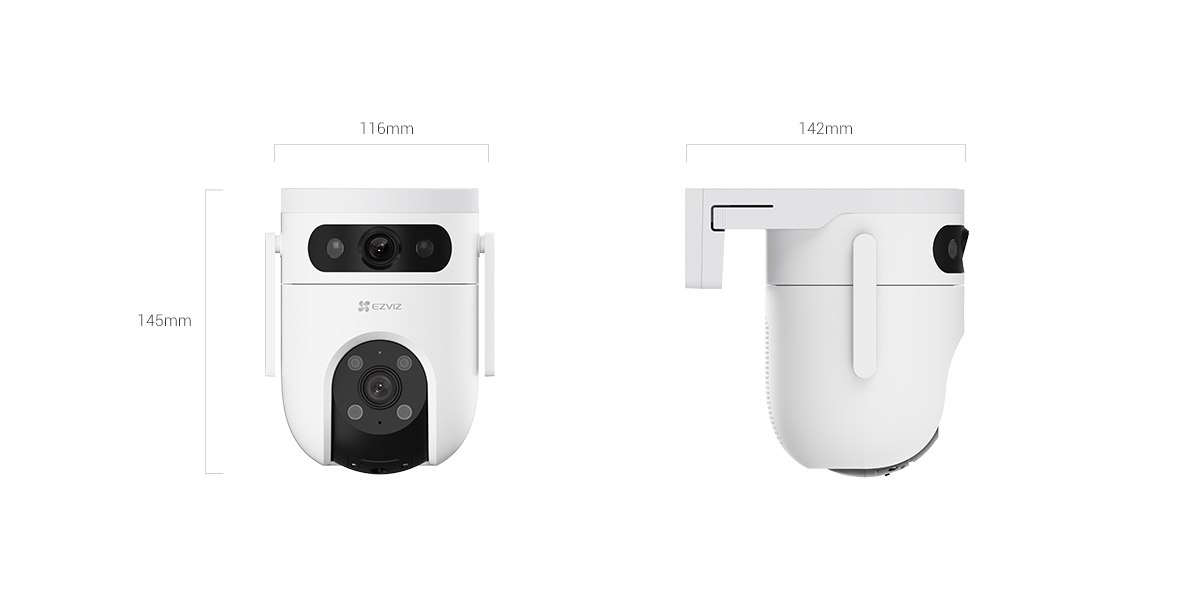

• Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
• Weight: Net Weight: 668 gWith Package: 960 g
• In the box: H9c Camera
• Certifications: CE / WEEE / RoHS / REACH
