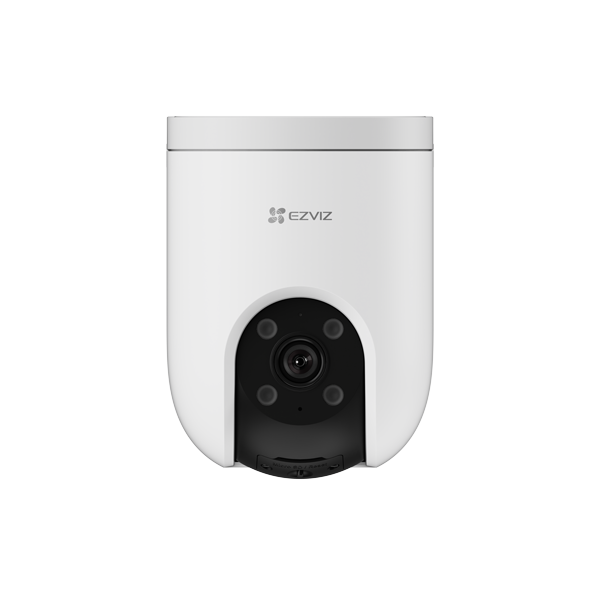

EZVIZ H8c 2K PoE Outdoor Pan-Tilt Camera

PoE version of the H8c 2K pan-tilt camera: one Ethernet cable for power and data, with 360° coverage and auto tracking.

Key features

• PoE power + data over one cable (DC 12 V also supported)
• 2K (2304 × 1296), 360° pan-tilt
• AI human shape detection with auto tracking
• Colour night vision; IR up to 30 m
• Active defence siren + strobe; two-way talk
• Weatherproof; microSD up to 512 GB

Key Specifications

• Model: CS-H8c PoE (2K)

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Lens: 4mm@ F1.6, viewing angle: 49° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
• PT Angle: Pan: 350°, Tilt: 80°
• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Day & Night: IR-cut filter with auto switch
• DNR: 3D DNR
• WDR: Digital WDR

Video & Audio

• Max Resolution: 2304 × 1296
• Video Compression: H.265 / H.264

Network

• Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

• Smart Alarm: AI-Powered Human Shape Detection
• Auto Tracking: Supports
• Customized Alert Area: Supports
• Two-way Talk: Supports
• Preset Locations: Supports

Storage

• Local Storage: Supports MicroSD Card (Up to 512 GB)
• Cloud Storage: EZVIZ CloudPlay storage

General

• Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
• IP Grade: Weatherproof Design
• Power Supply: DC 12V/1A, Supports PoE power supply
• Power Consumption: MAX. 12W

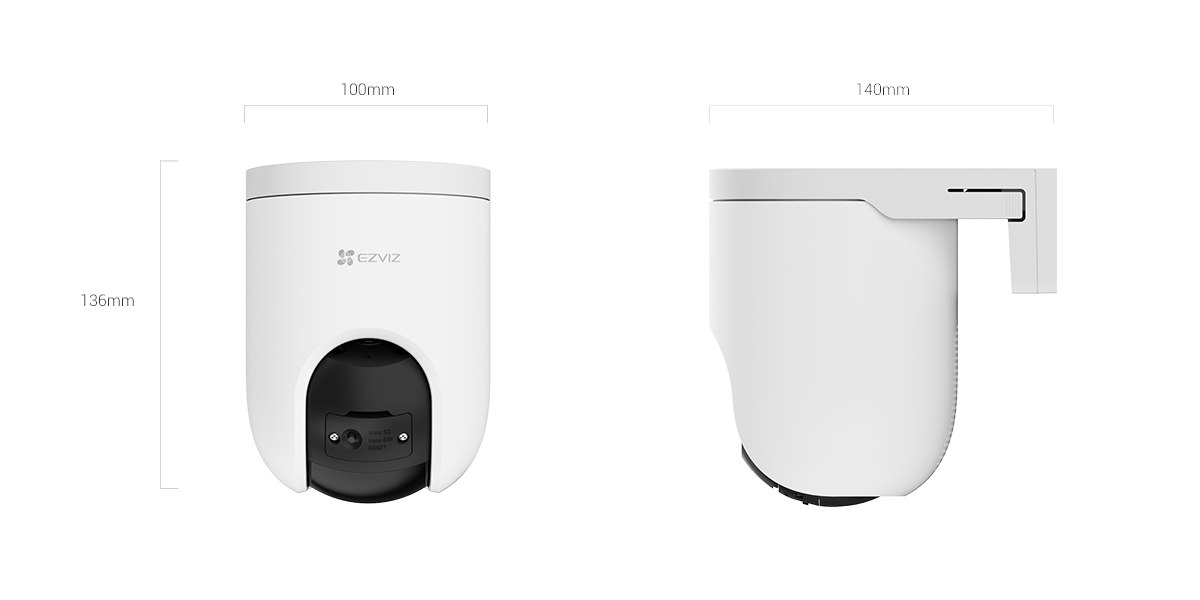

• Dimensions: 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
• Weight: Net Weight: 525g With Package: 745g For EU Standard Version
• In the box: H8c PoE (2K) Camera
• Certifications: CE / UL / RoHS / WEEE / REACH
