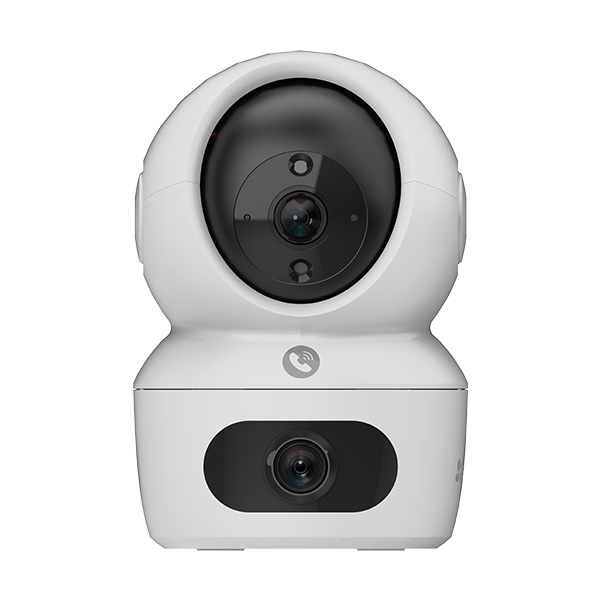

EZVIZ H7c Dual-Lens 2K+ Indoor Pan-Tilt Camera

Dual-lens indoor camera: a fixed wide-angle lens and a pan-tilt lens watch two areas at once, with co-detection that lets one lens trigger tracking on the other.

Key features

• Dual 2K+ lenses (fixed 2.8 mm wide + 6 mm pan-tilt)
• Co-detection for automatic smart tracking
• One-tap linked-view change in the app
• AI human shape detection, two patrol modes
• Two-way calling with touch button; smart colour night vision
• Wi-Fi 6 dual-band (2.4/5 GHz); microSD up to 512 GB

Key Specifications

• Model: CS-H7c-R100-8G44WF

Camera

• Resolution: Dual 2K+ Resolution
• Image Sensor: 1/3" Progressive Scan CMOS
• Fixed Lens: 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
• PT Lens: 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR

Compression

• Video Compression: H.264/H.265

Network

• Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection


• Max. Resolution: 2560 × 1440

Interface

• Storage: Micro SD card slot (Max. 512G)
• Power: TYPE-C
• Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

• Standard: IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
• Frequency Range: 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz

General

• Operating Conditions: -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)
• Power Consumption: 8W max
• Power Supply: DC 5V/2A
• IR Range: MAX. 10 meters (32.81ft)

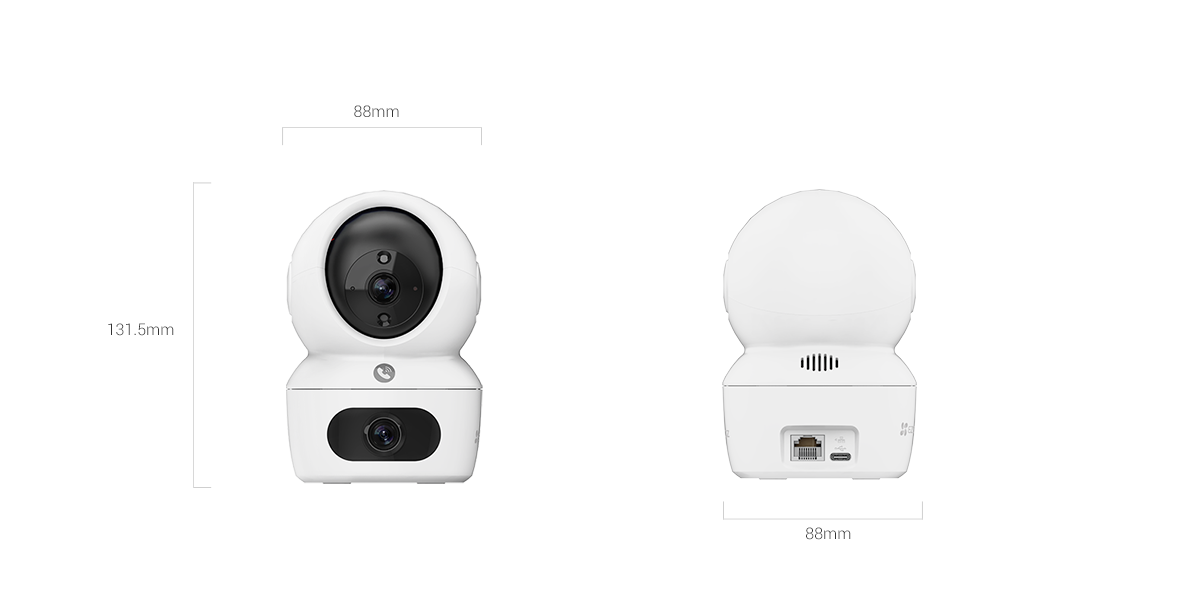

• Dimensions: 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)
• Net Weight: 270 g (9.52 oz)
• In the box: Camera (x1)
• Certifications: CE / UKCA / WEEE / RoHS / REACH / UL
