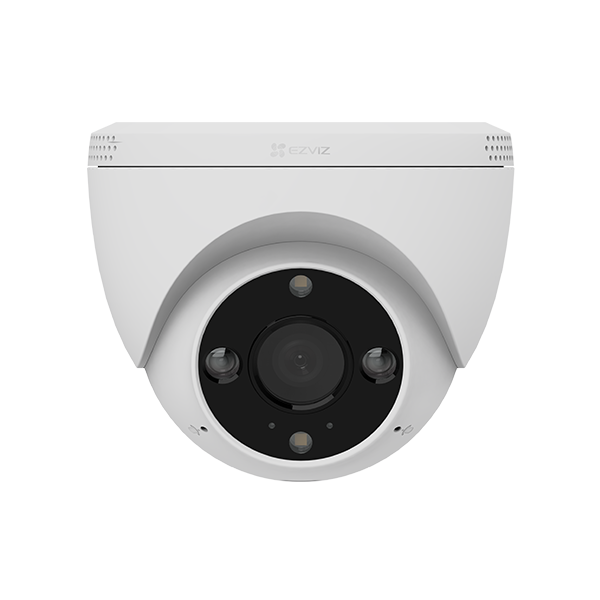

EZVIZ H4 2K Dome Camera

2K Wi-Fi dome (turret) camera with colour night vision, two-way calling and AI human/vehicle detection in an IP67 housing for eaves and ceilings.

Key features

• 2K (2304 × 1296), H.265
• Colour night vision; IR up to 30 m
• AI human/vehicle shape detection, custom zones
• Two-way calling, customisable voice alerts
• IP67 weatherproof
• Wired RJ45 + 2.4 GHz Wi-Fi; microSD up to 512 GB

Key Specifications

• Model: CS-H4-R201-1H3WKFL

Camera

• Image sensor: 1/2.7” Progressive Scan CMOS
• Lens: 2.8 mm, viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal), 102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62° (Diagonal)
• DNR: 3D DNR
• Day & Night: IR-cut filter with auto-switching
• WDR: WDR
• BLC: Supports
• Night Vision: Up to 98 ft / 30 m

Video & Audio

• Max. Resolution: 2304 × 1296
• Max. Bitrate: 3Mbps
• Video Compression: H.265 / H.264

Network

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Wired Network: RJ45 × 1(10M/100M Adaptive Ethernet Port)

Functions

• Smart Alarm: Motion Detection, AI-Powered Human Shape Detection / Vehicle Shape Detection
• Customized Alert Area: Supports
• Two-way Talk: Supports

Storage

• Local Storage: Supports microSD card storage (up to 512 GB)
• Cloud Storage: Supports EZVIZ CloudPlay storage

General

• IP Grade: IP67
• Operating Conditions: -30℃ ~ 50℃, humidity 95% or less (non-condensing)
• Power Supply: DC 12V / 1A
• Power Consumption: MAX. 8W

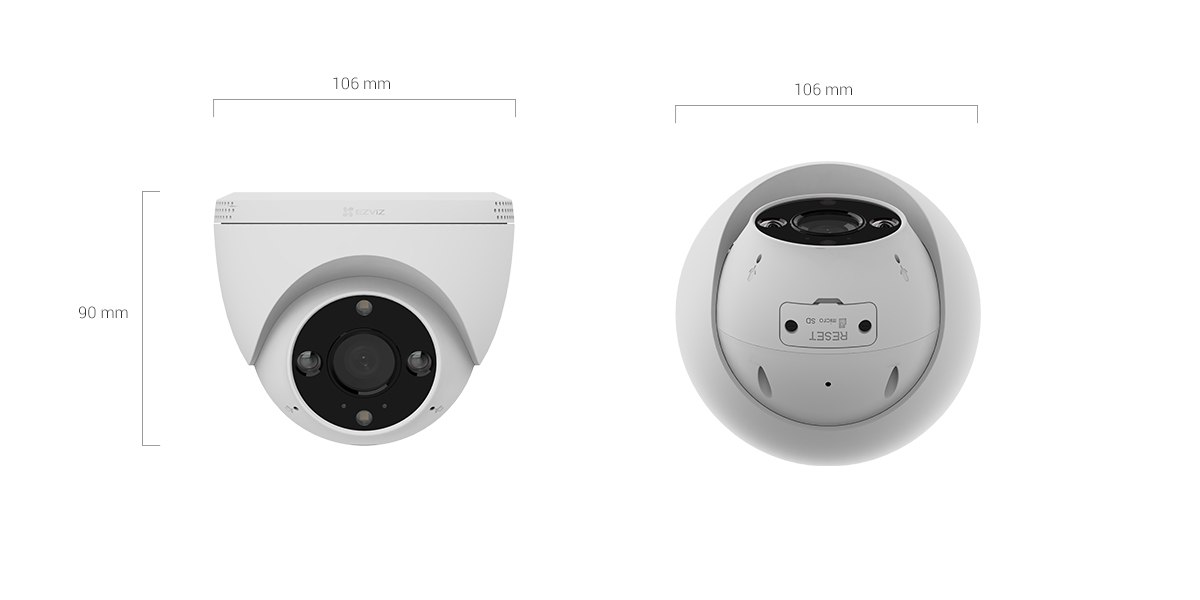

• Dimensions: 106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch)
• Weight: 229 g (8.08 oz)
• In the box: H4 2K Camera
• Certifications: CE / UKCA / RoHS / REACH / WEEE
