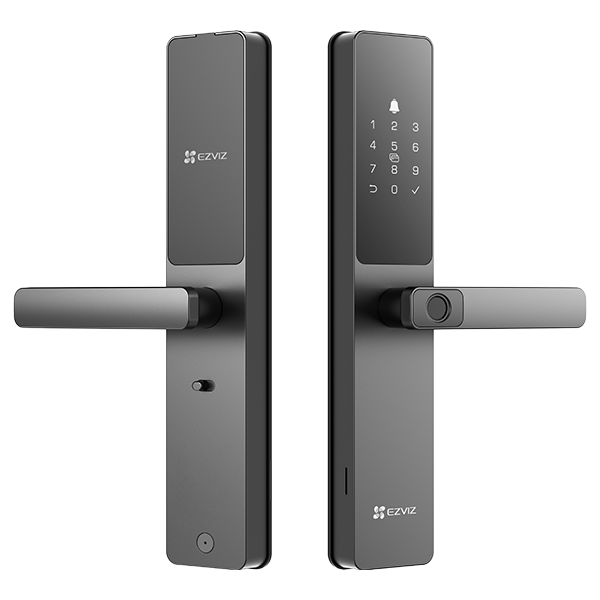

EZVIZ DL05 Smart Door Lock

Wi-Fi smart door lock with fingerprint, passcode, card, Bluetooth app key and mechanical key, plus remote unlock, temporary codes and a built-in doorbell.

Key features

• 7 unlock methods: fingerprint, passcode, card, key, app Bluetooth key, temporary code, remote
• 50 fingerprints / passcodes / cards
• Anti-peeping code (up to 20 digits), child safety lock
• Real-time app alerts, anti-tamper alarm
• Built-in electronic doorbell; Type-C emergency power
• IP65 front panel; fits 30–110 mm doors (5085 mortise)

Key Specifications

• Model: CS-DL05-R201-WBCP-GR (5085) / CS-DL05-R200-WBCP-BK (5085)

Material and Specification

• Panel Material: Aluminum Alloy

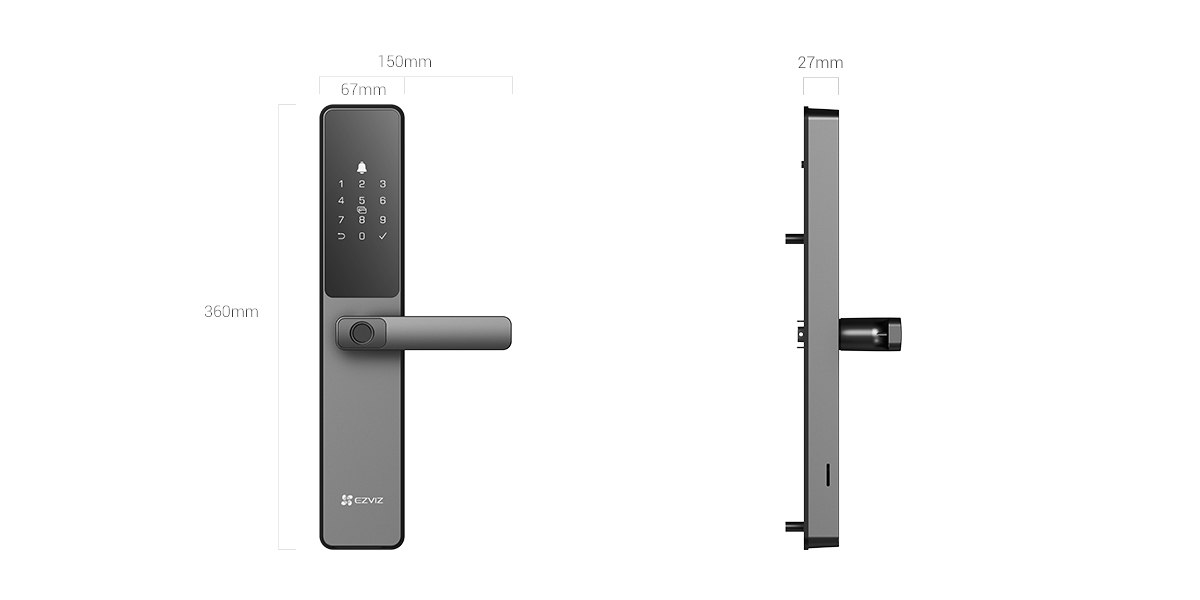

• Panel Size: 360 x 67 x 27 mm
• Color: Metallic Grey
• Unlocking Direction: Press the handle down to unlock; lift the handle up to lock.
• Lock Body: 5085
• Weatherproof: IP65 (Front Panel)
• Emergency Charging: Type-C
• Working Power: 1.5V AA alkaline batteries x 8

Technical Specification

• Unlocking Methods: Fingerprint, Passcode, Proximity Card, Mechanical Key, Bluetooth Key via the EZVIZ App, Temporary Codes, Remote Unlocking
• User Capacity: 50 pcs
• Fingerprint Capacity: 50 pcs
• Passcode Capacity: 50 pcs
• Card Capacity: 50 pcs
• Communication Methods: 2.4 GHz Wi-Fi, Bluetooth
• Temporary Access Codes: Supports
• Anti-Peeping Code: Supports, Max. 20 digits
• Low-Battery Warning: Supports
• Privacy Mode: Supports
• User Management: Supports
• Real-Time Notification: Supports
• Wrong-Attempt Protection: Supports, Five failed attempts in five minutes trigger a three-minute lockout
• Anti-Tamper Alarm: Supports
• Remote Control: Supports
• Child Safety Lock: Supports
• Supported Door Thickness: 30-110 mm
• Working Temperature: -25°C ~ 70°C
• Operating Humidity: 10% ~ 95%
• In the box: DL05 Smart Fingerprint Lock (Front Panel + Rear Panel + Hole Template)
• Certifications: CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
